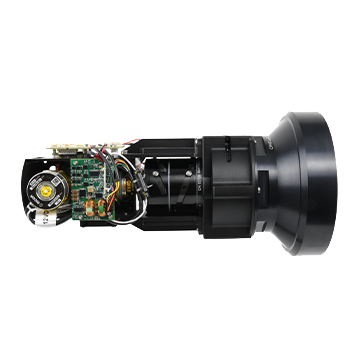

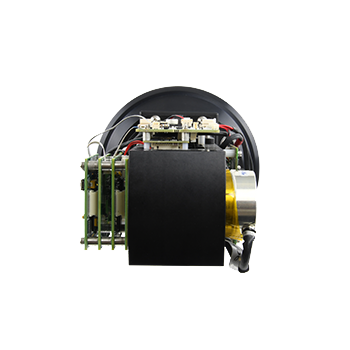

Ventus 275, 700

LONG-RANGE, COOLED MWIR

The Ventus 275 and 700 are equipped with a cooled InSb mid-wave infrared sensor that delivers exceptional infrared imaging capabilities. Continuous zoom autofocus lens technology, advanced image processing and streamline design make this an ideal mid-wave zoom camera for integrators looking to place powerful imaging capabilities in their systems.

Technical Stats

Detector Type	IDC InSb
Array Format	640 x 512
Pixel Pitch	15 micron
Spectral Response	MWIR
Frame Rate	30 Hz
Bit Depth	14-bit
NETD	<65 mK

Analog Video Output	NTSC/PAL
Digital Video Output	Uncorrected 14-bit CameraLink®
IP Video Output	MJPEG or H.264 Encoded
NUC	2 NUC Tables 1-point thru lens
Image Enhacement	Linear Histogram AGC, CLAHE, LAP, Sharpen, De-noise, Electronic image, stabilization
Color Palette Options	User color palettes/LUT
Digital Zoom / Pan	4x
Onboard Storage	Up to 32GB microSD
Camera control/Command Interfaces/System Control	Ethernet Serial (RS-422/RS-232)

	275 mm	700 mm
Size (L x W x H)	198 x 102 x 95 mm	309 x 160 x 160 mm
Weight	1,150g	2,780g
Input Voltage	12VDC	12VDC
Power Dissipation	10.5W typical 15W peak	10.5W typical 15W peak
Operating Temperature	-20°C to +60°C	-20°C to +60°C
Mounting	1/4-20 Tripod Mount and M4 Tapped holes	1/4-20 Tripod Mount and M4 Tapped holes

Lens	FOV	F#	Focus	Optical Zoom	EFL
275 mm	28.4° to 2.0°	5.5	One-touch autofocus, manual	14x	19 to 275 mm
700 mm	11.4° to 0.8°	5.5	One-touch autofocus, manual	15x	48 to 700 mm

Ventus 275, 700 Signature Features

Mid-Wave
Infrared

15 micron Pixel Pitch

See further while not compromising footprint or weight. A 15µm-pitch InSb focal plane array provides a 640×512 image that leverages the superior optical quality of the highly tuned athermalized and parfocal zoom lenses ranging from 28.4-0.8° HFOV. A powerful processing engine provides electronic image stabilization, digital zoom, automatic/manual gain control, adaptive contrast control (CLAHE/LAP), target tracking and detection, stock and user-defined LUTs, and 32GB of onboard video/still storage. The control and video interface offers digital (CameraLink) and analog video as well as an H.264-encoded IP stream. Command over serial and/or Ethernet using connection interfaces standardized across the wide Ventus™ and Vinden LR™ product lines.

Two lens options (19-275mm, 48-700mm) provide a uniquely cost-effective solution for applications such as security and surveillance, fixed monitoring, defense, manned/unmanned ground and airborne platforms, and many more. Sierra-Olympia Technologies’ expert support in documentation and staff make the integration of Ventus products a nearly drop-in experience. The Ventus cameras are also easily exportable under US Commerce regulations.

Simultaneous analog/digital output
Continuous Zoom with Auto Fous
Image Stabilization
Ideal for fixed, ground or airborne platforms
