Viento HD10

High resolution ten-micron LWIR with flexible interface options

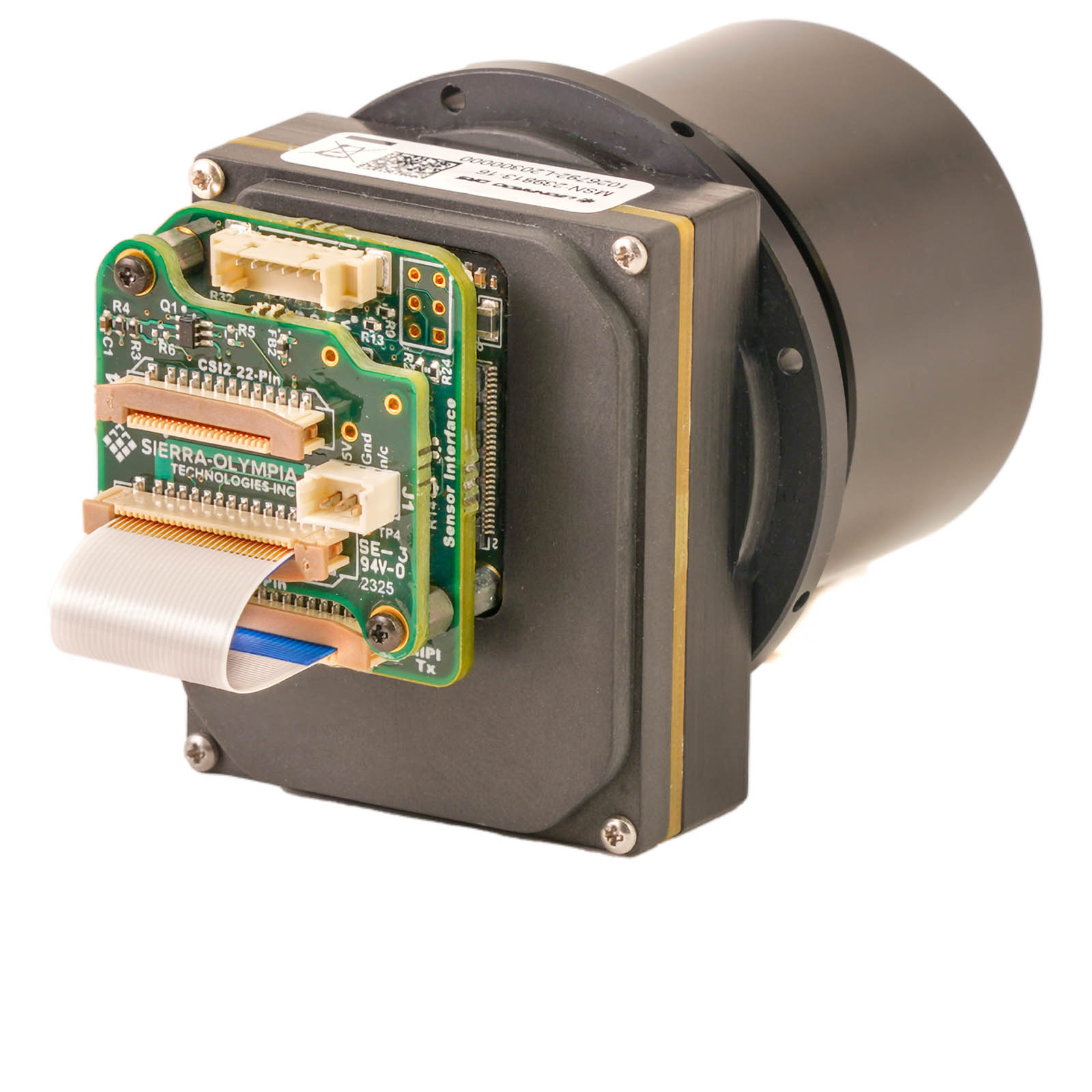

The Viento HD10 is the evolution of the Viento family of LWIR cameras, offering four times the resolution of its predecessor with the same state-of-the-art ten micron pixel architecture. Sierra-Olympia’s interface options package the DRS Leonardo camera core with a variety of interface options (USB, GigE, SDI) that make it easy to integrate and demonstrate in a wide variety of OEM systems.

Categories: 1280 x 1024 Products, LWIR Products

Viento HD10 Data Sheet

Technical Stats

Detector Type	Uncooled Vox Microbolometer
Array Format	1280 x 960, 1280 x 1024 (SXGA), 1312 x 1056 max
Pixel Pitch	10 micron
Spectral Response	LWIR
Frame Rate	30 Hz 9 Hz available
Bit Depth	14-bit
NETD	<30 mK (normalized, filtered), <60 mK (normalized)

	USB	GigE	SDI

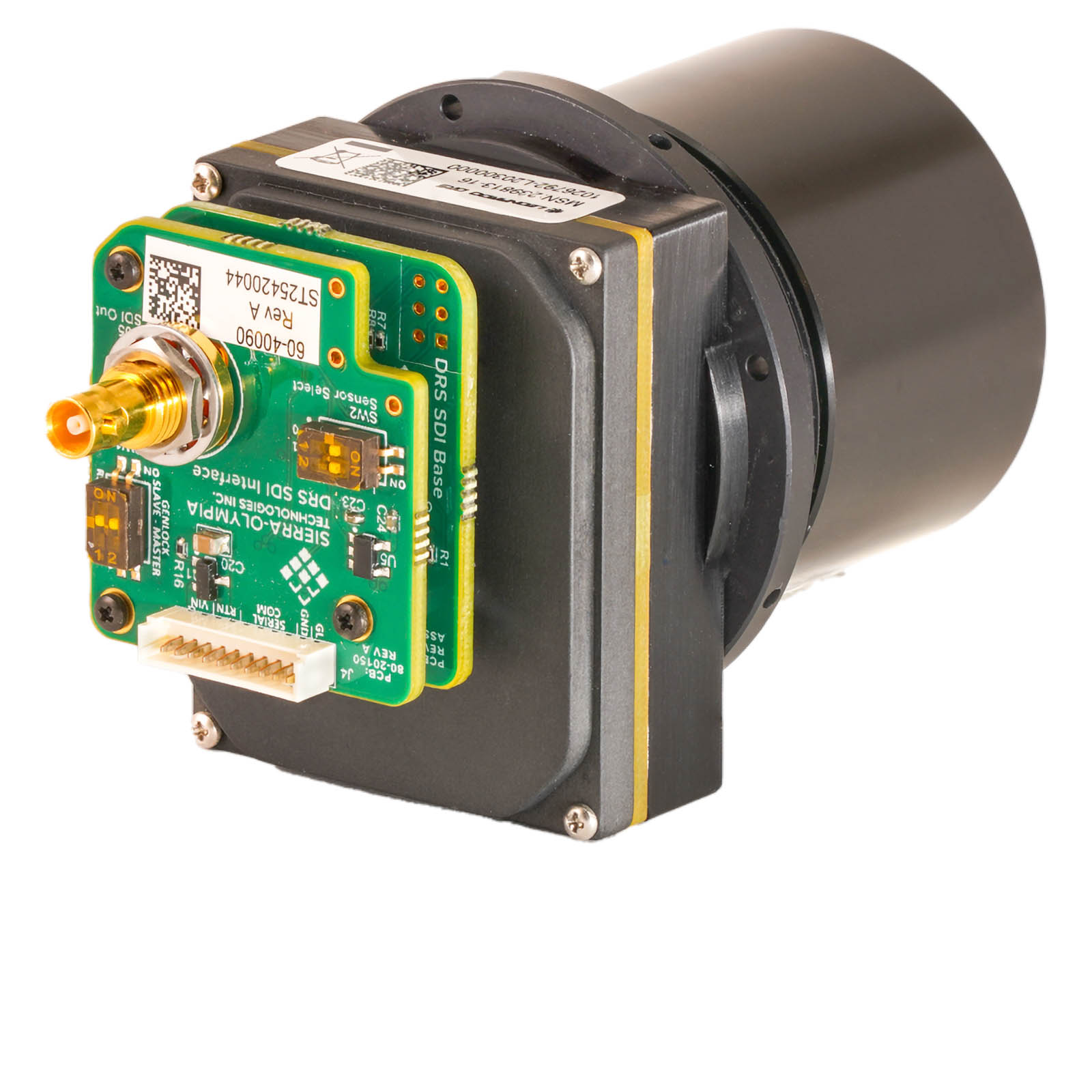

Digital Video Output	USB3.0 UVC: Y16, Y800 and YUY2 1280 x 1024 Only	See IP Video Output	HD-SDI 1080p30 format Centered in frame with black borders.

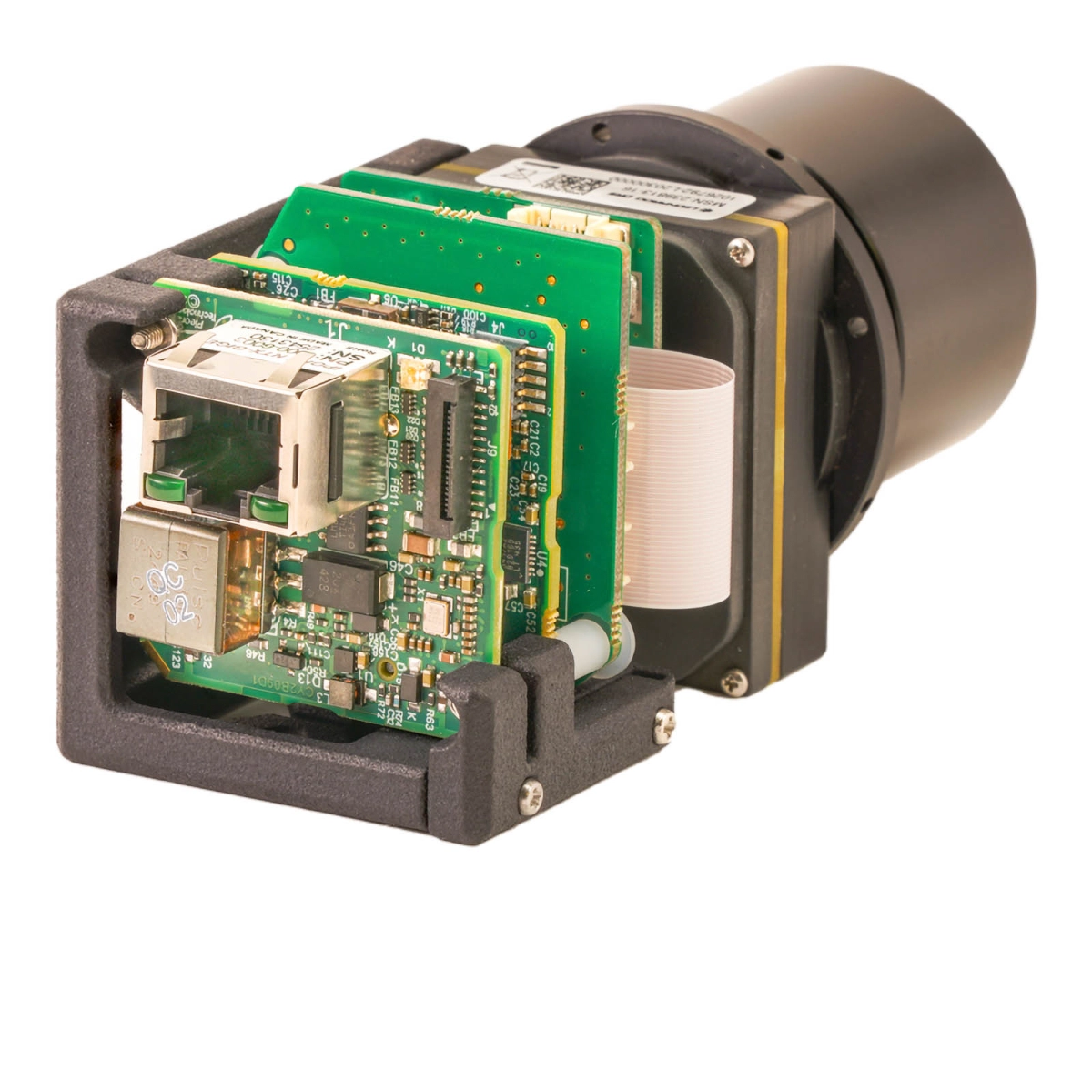

IP Video Output	N/a	GigEVision Pixel Format: Mono14, Mono8, YCbCr709_422_8_CbYCrY	N/a
NUC	1-point with shutter or through lens	1-point with shutter or through lens	1-point with shutter or through lens
Image Enhancement	Image Contrast Enhancement (ICE™) with gain and level bias controls	Image Contrast Enhancement (ICE™) with gain and level bias controls	Image Contrast Enhancement (ICE™) with gain and level bias controls
Color Palette Options	YUV422 Eleven predefined pallets One customizable color palette	YUV422 Eleven predefined pallets One customizable color palette	YUV422 Eleven predefined pallets One customizable color palette
Digital Zoom / Pan	Region of Interest 1X to 4x	Region of Interest 1X to 4x	Region of Interest 1X to 4x
Symbology	N/A (TBR)	N/A (TBR)	N/A (TBR)

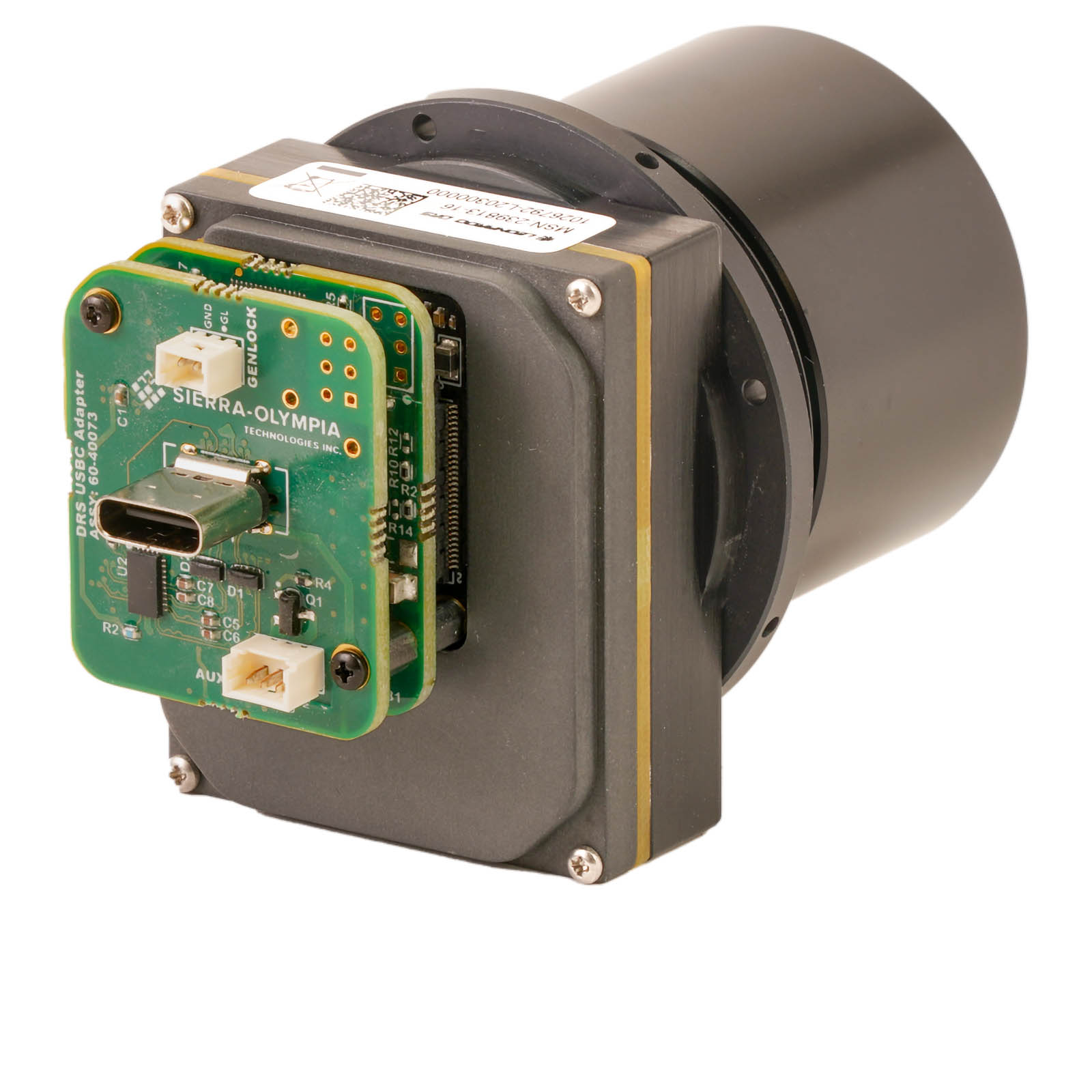

Camera Control/Command Interfaces/System Control	USB-C	Virtual serial pass-through via IP	Serial pass-through
Other Electrical Interfaces	External Sync	External Sync	External Sync

	USB	GigE	SDI
Sealed Rating	Sealed lens/lens mount IP 67 at M34 lens mount into face	Sealed lens/lens mount IP 67 at M34 lens mount into face	Sealed lens/lens mount IP 67 at M34 lens mount into face
Operating Temperature	-40°C to +70°C	-40°C to +70°C	-40°C to +70°C
Power Dissipation	2.7W Typical, 4.6W Max	5.0W typ.	3.7W Typ., 7.7W max
Input Voltage	External Power 5V. Some USB3.0 can power this.	PoE	5-14V

Lens	HFOV x VFOV	F#
No Lens	N/a	N/a

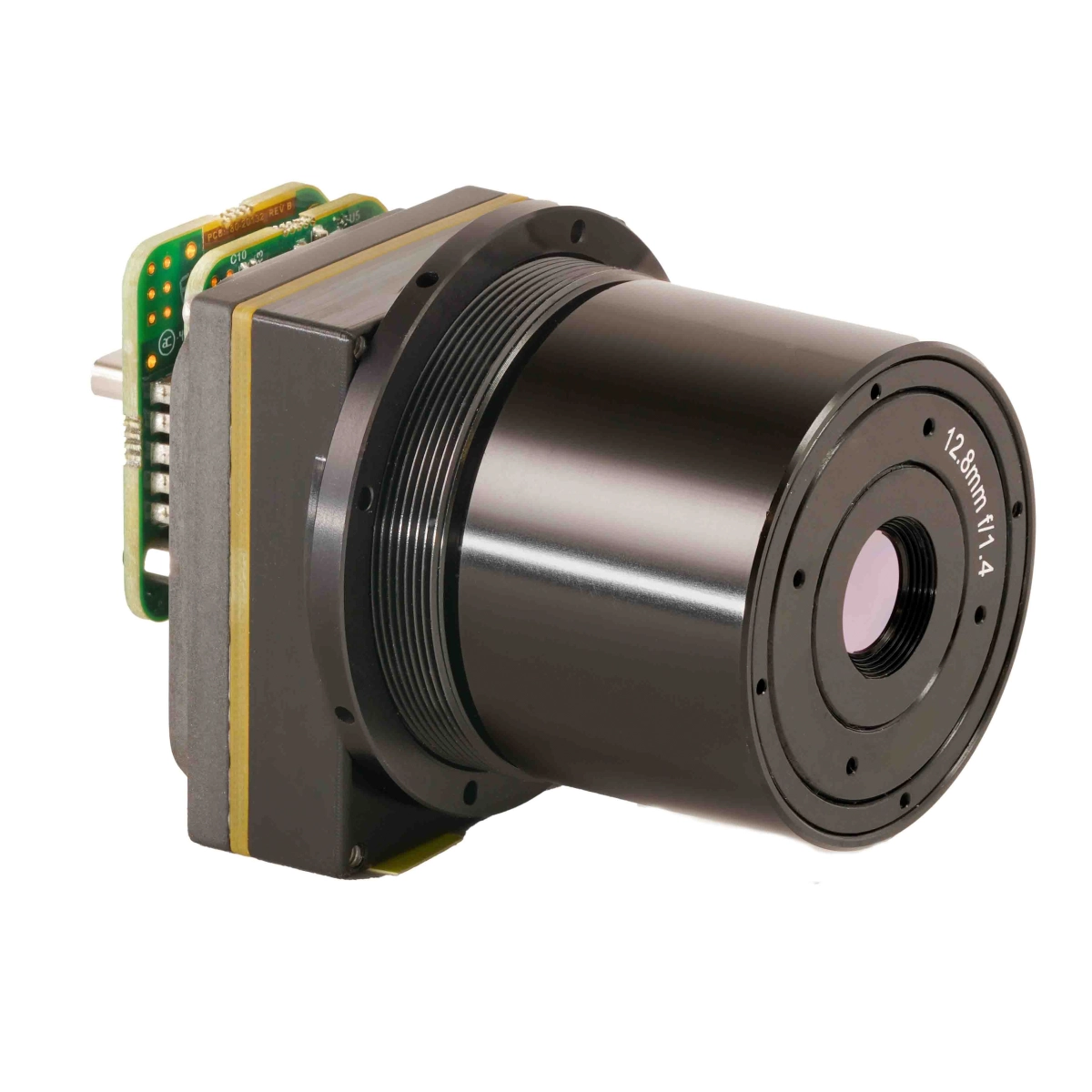

12.8 mm	60° x 47°	1.4
25 mm	30° x 23°	1.2
35 mm	21° x 17°	1.4

Description

Viento HD10 Signature Features

Long-Wave
Infrared

10 micron Pixel Pitch

Low SWaP
Light Payloads

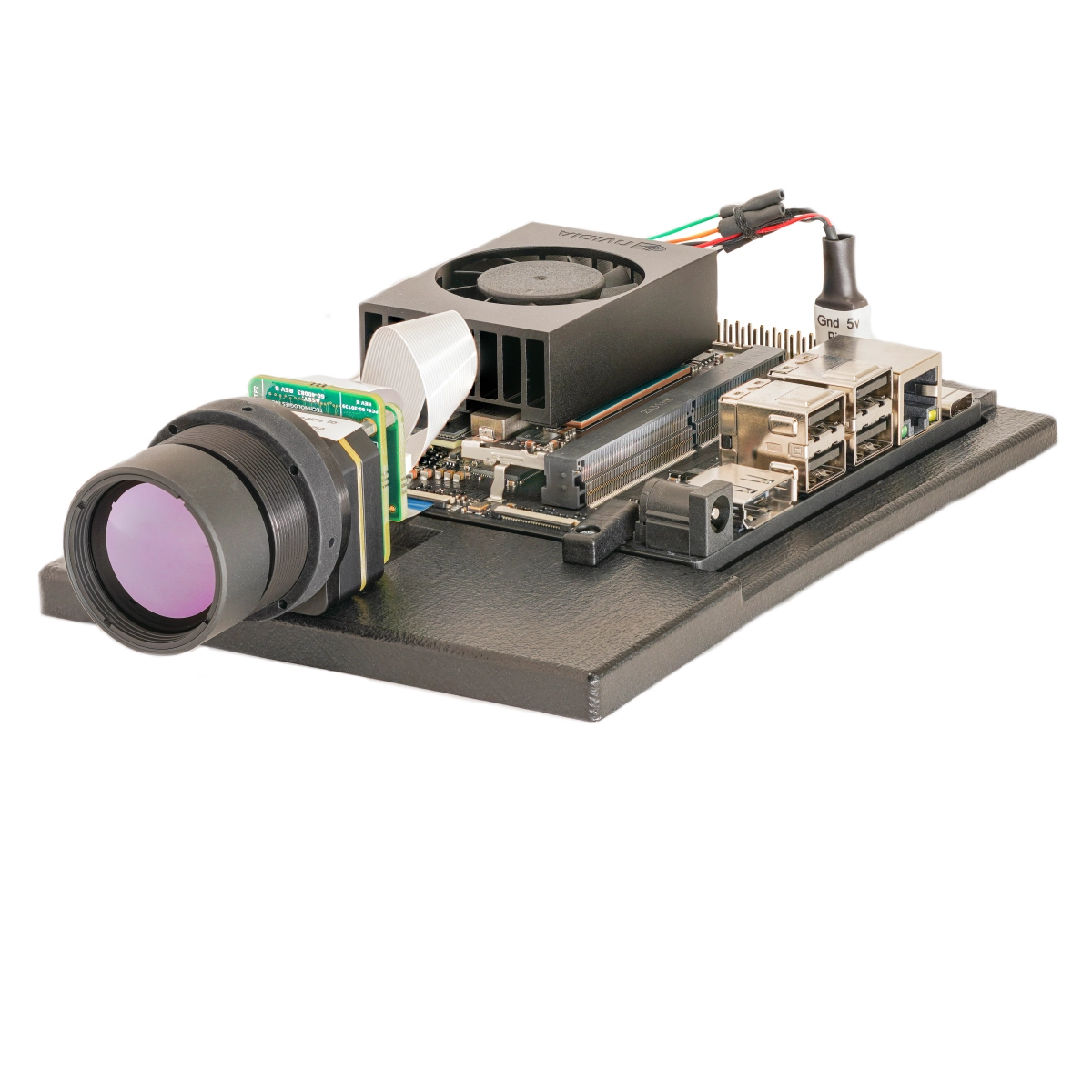

The Viento HD10 is built around an industry-leading 10-micron pixel pitch camera core by Leonardo DRS. The small pixel pitch increases range and acuity and the best-in-class array resolution preserves field-of-view, making the Viento HD10 an unparalleled choice for applications where both situational awareness and target discrimination are critical. Custom-developed interface boards make prototyping, demonstration, and integration fast and easy with options for USB 3.0, GigE Vision®, and SDI. Supporting documentation for each interface gives out-of-the-box connectivity so work can start immediately.

1312 x 1056 Max Array Format
Variety of lens options available
Sensitivity <30 mK NETD (with 3-D noise filter)
Onboard image processing
