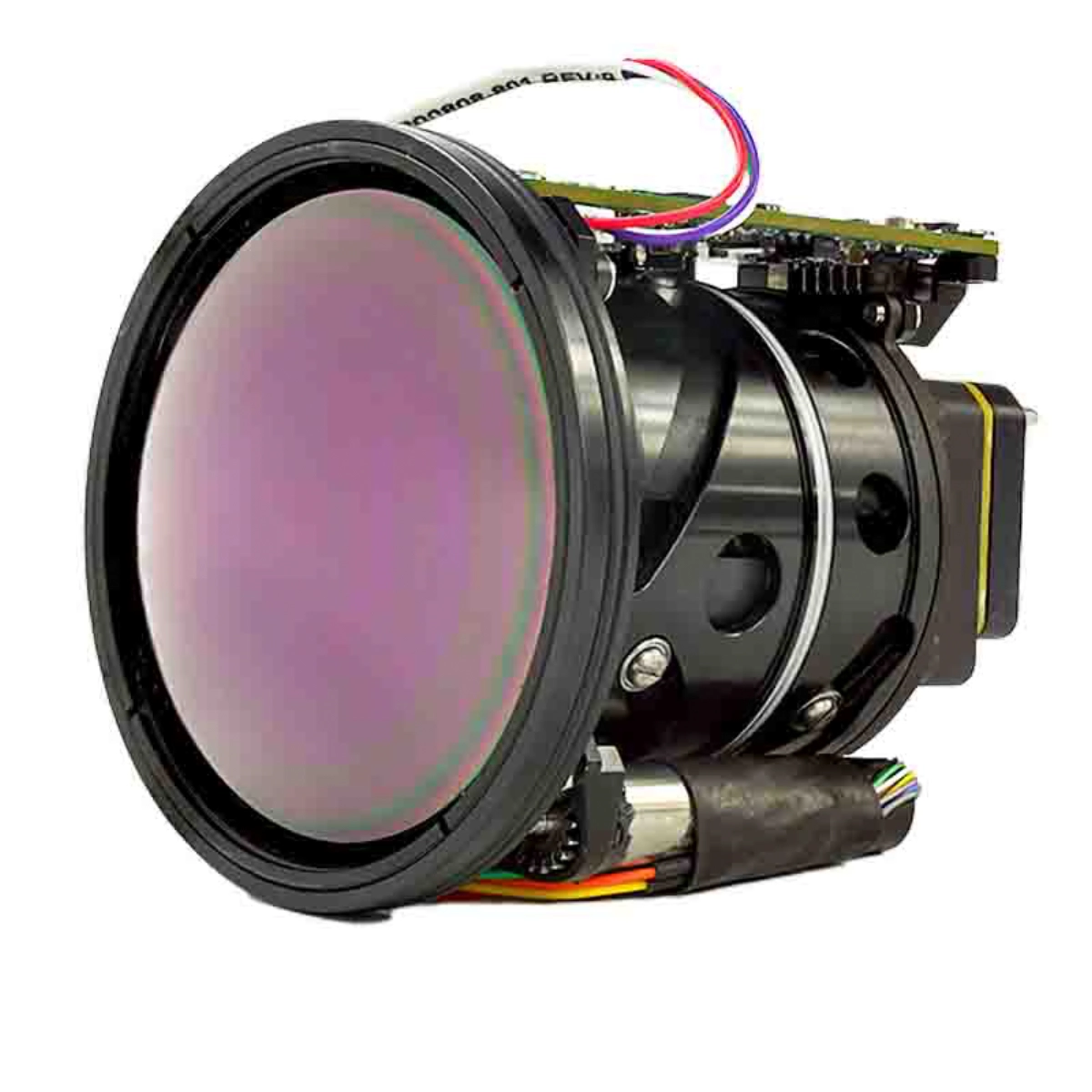

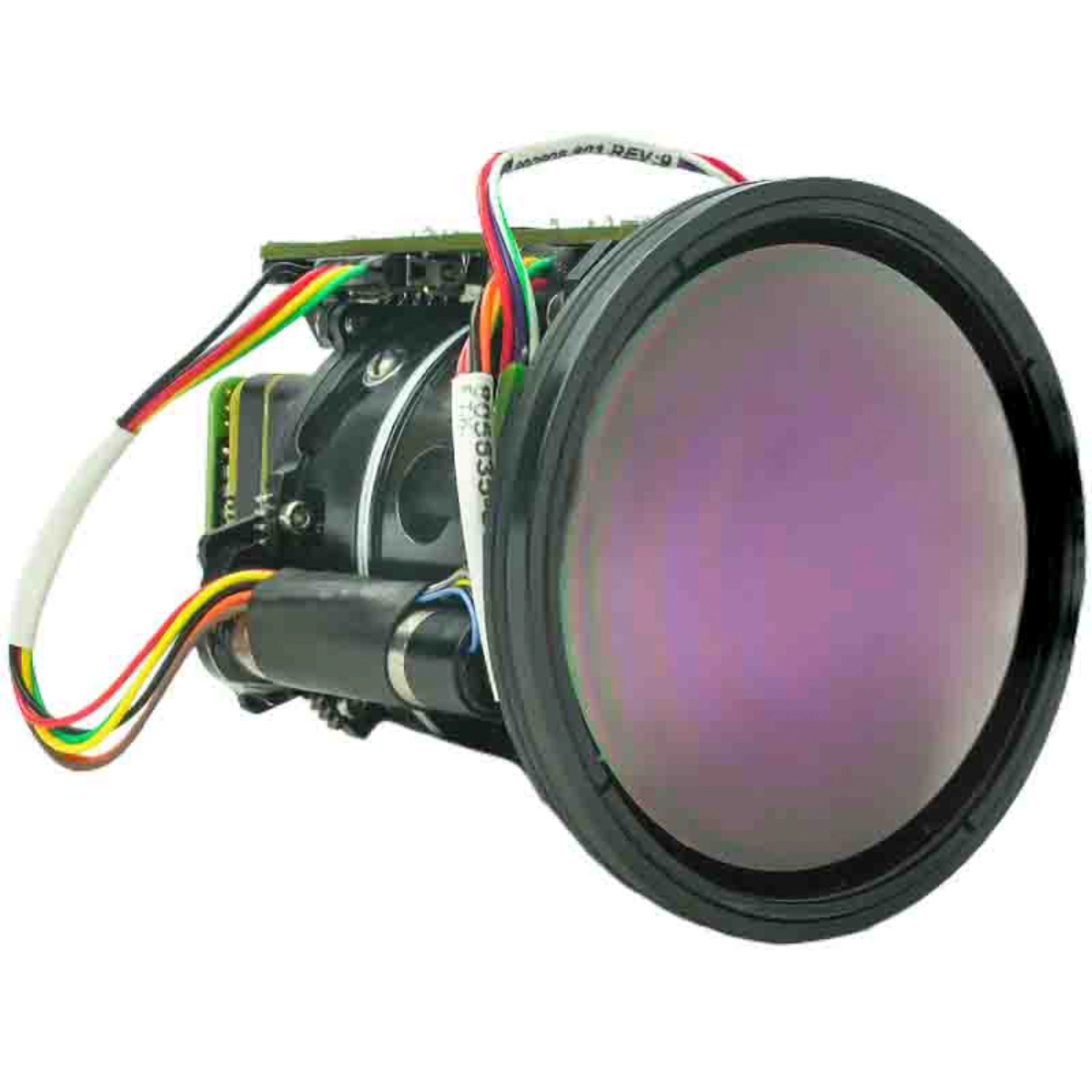

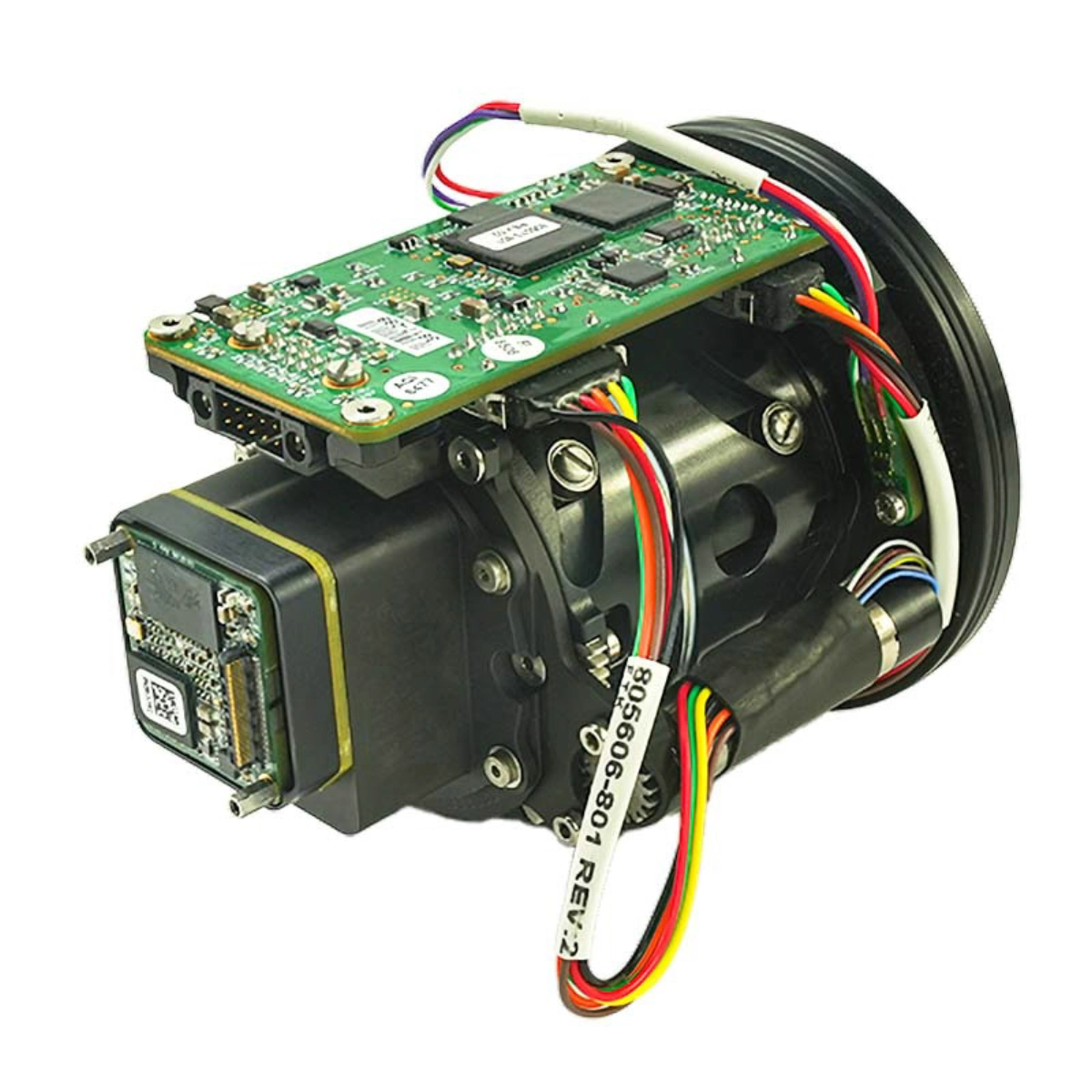

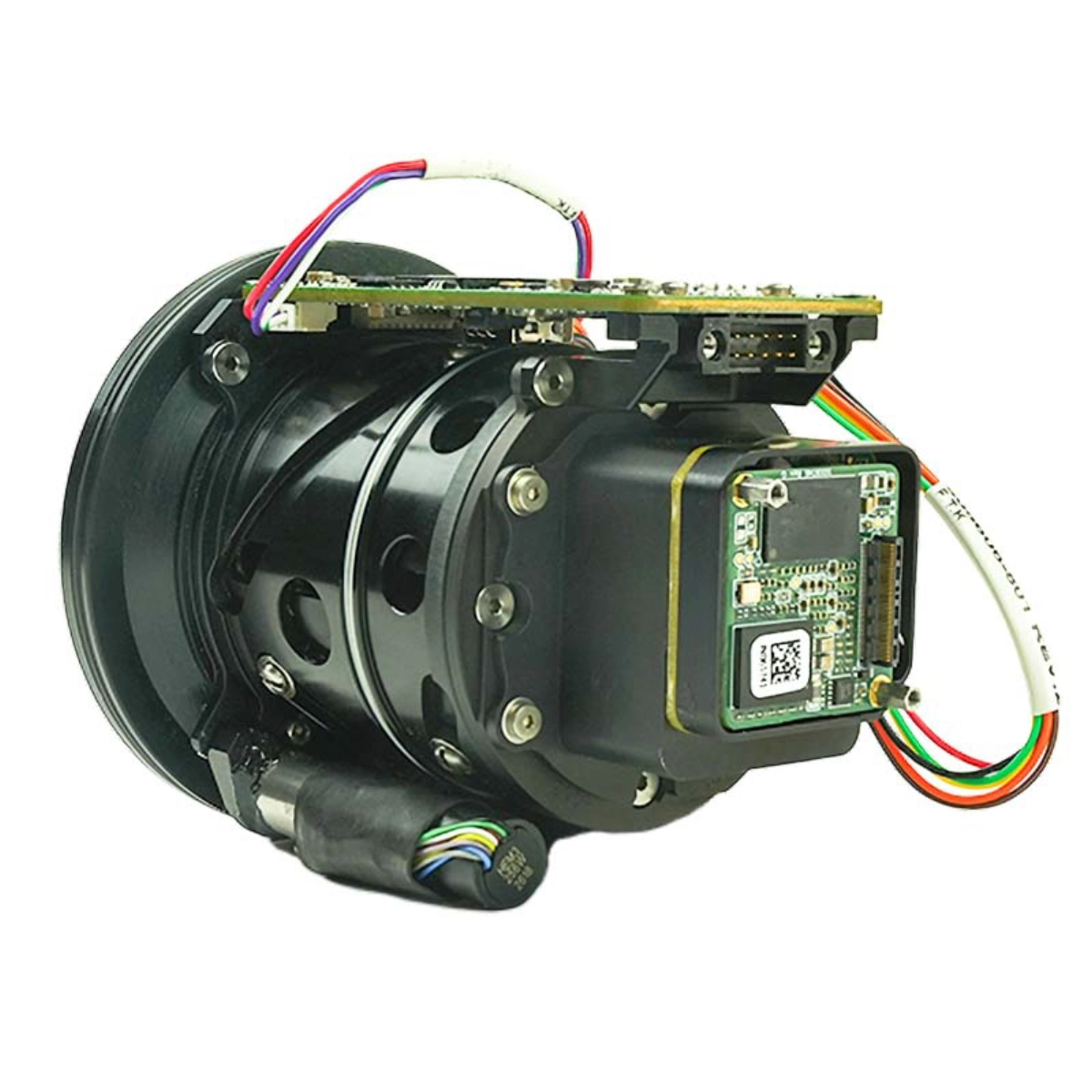

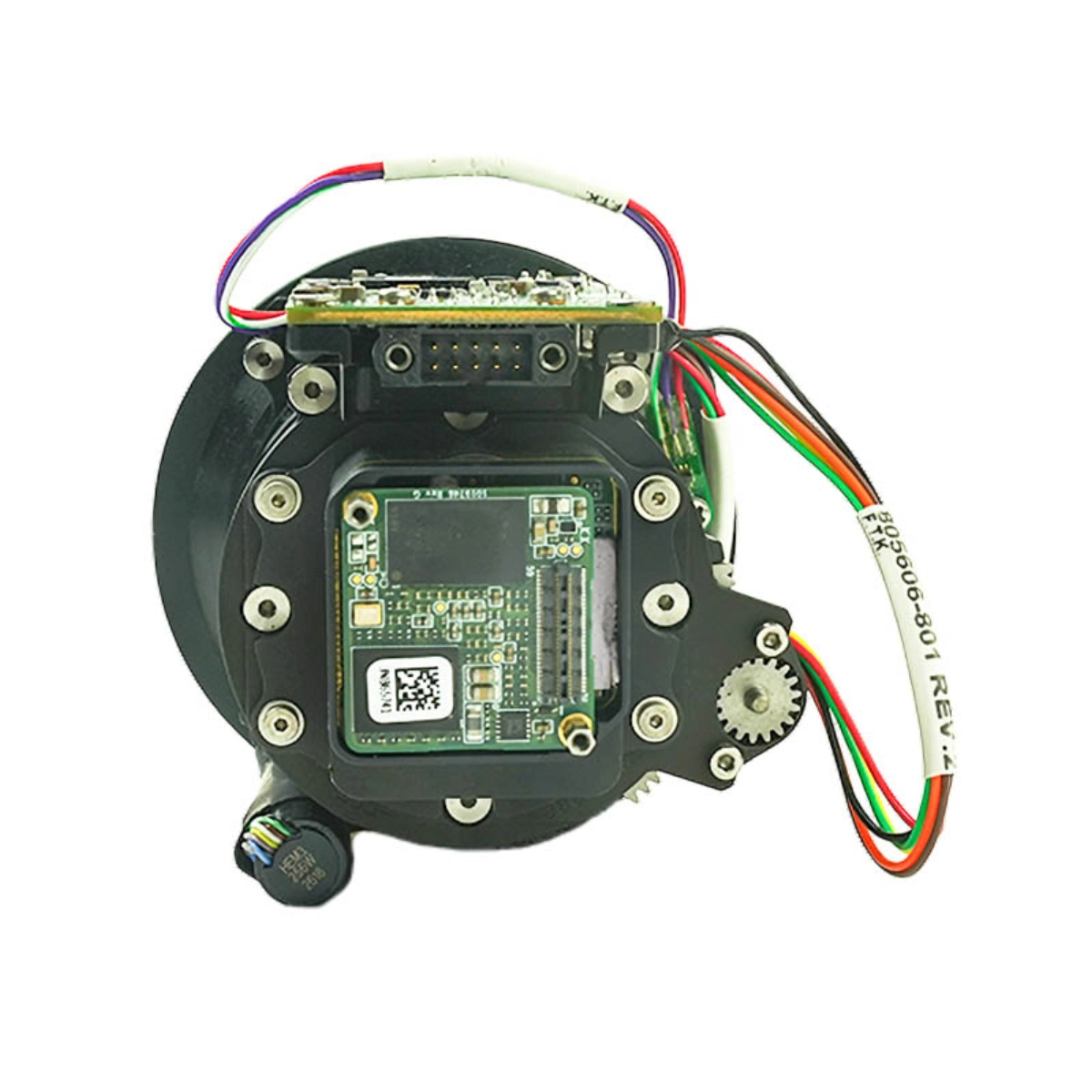

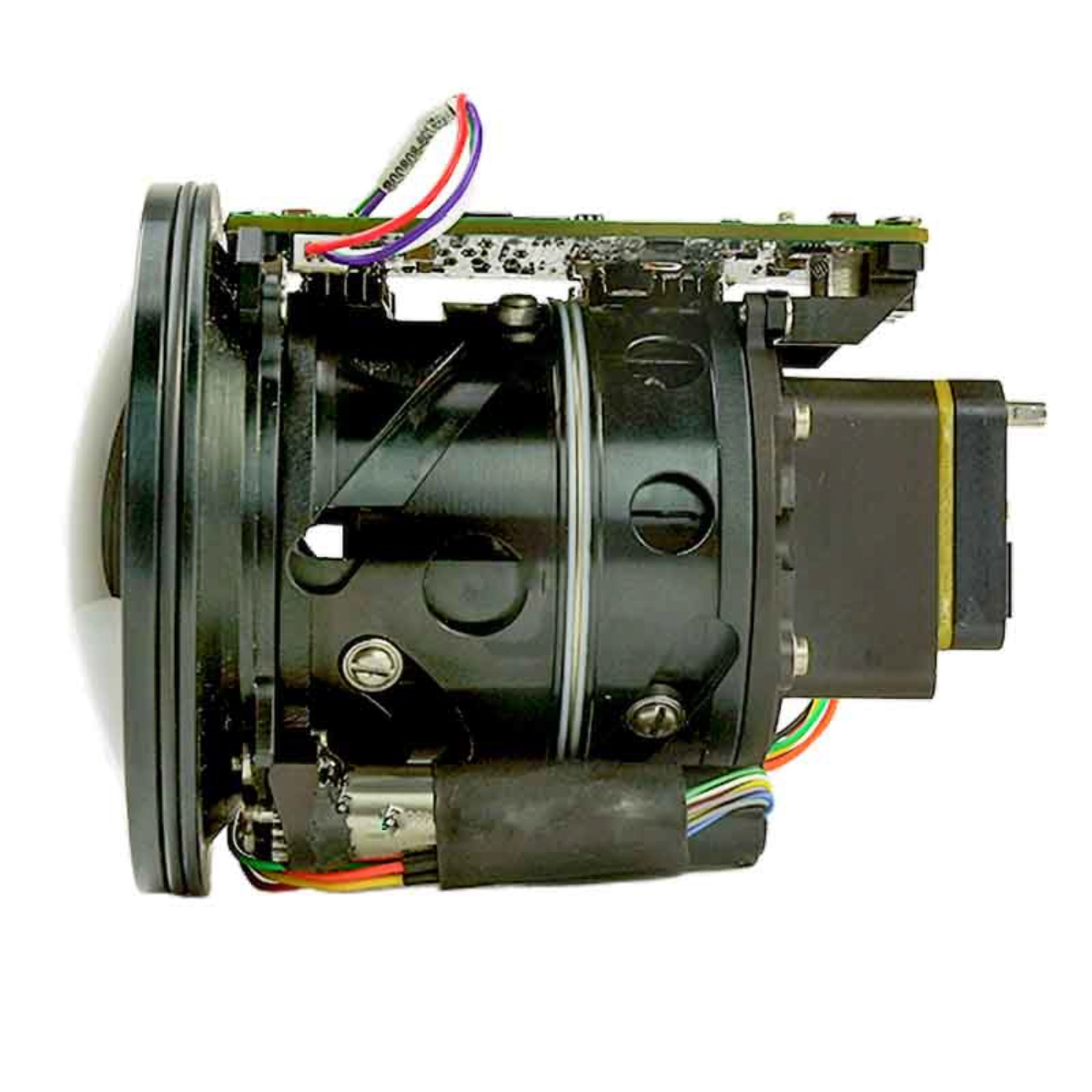

Vinden 75T

SWAP-optimized LWIR zoom core engine

The Vinden 75T LWIR camera engine packages the state of the art DRS Tenum 640 10-micron LWIR core with a high-performance continuous zoom optic. Designed for efficient integration without sacrificing acuity and situational awareness.

Technical Stats

Detector Type	Uncooled Vox Microbolometer
Array Format	640 x 512
Pixel Pitch	10 micron
Spectral Response	LWIR
Frame Rate	60 Hz 9 Hz available
Bit Depth	14-bit
NETD	<20 mK (normalized, filtered), <50 mK (normalized)


Digital Video Output	14-bit/8-bit LVCMOS or Camera Link®
Analog Video Output	NTSC/PAL (requires feature board)
NUC	1-point with shutter or through lens
Image Enhancement	Image Contrast Enhancement (ICE™) with gain and level bias controls
Color Palette Options	24-bit RGB and YUV (4,2,2) Superframe
Digital Zoom / Pan	Region of Interest 1X to 4x
Symbology	User Defined
Camera Control/Command Interfaces/System Control	UART/RS-232 USB 2.0 (with feature board) USB-C (with dev kit)
Other Electrical Interfaces	External Sync

	USB
Sealed Rating	Sealed lens/lens mount IP 67 at M34 lens mount into face
Operating Temperature	-40°C to +70°C
Power Dissipation	2.7W Typical, 4.6W Max
Input Voltage	Lens: 12V Sensor: 3-5.5 V Base Configuration 4.5-18 V with Feature Board 5V with USB dev kit

	75mm
HFOV x FOV	28.7° x 5.9°
F#	1.2
EFL	15mm to 75mm
Focus	Electronic via API
Optical Zoom	5x

Vinden 75T Signature Features

Long-Wave
Infrared

10 micron Pixel Pitch

Low SWaP
Light Payloads

The Vinden was designed especially for applications where SWAP matters most, such as gimbal platforms. The 15-75mm continuous zoom lens paired with the small-pitch, 10-micron, DRS Tenum 640 detector perceives greater magnification than camera packages of similar size. The lens control interface allows precise electronic control of zoom and focus, and the detector is armed with on-board contrast enhancement and image processing and compatible with SOTI interface options such as USB-UVC, SDI, and MIPI.

5X Continuous Zoom with Electronic Focus
10 Micron LWIR Sensor
Onboard Contrast Enhancement
60Hz Frame Rate
