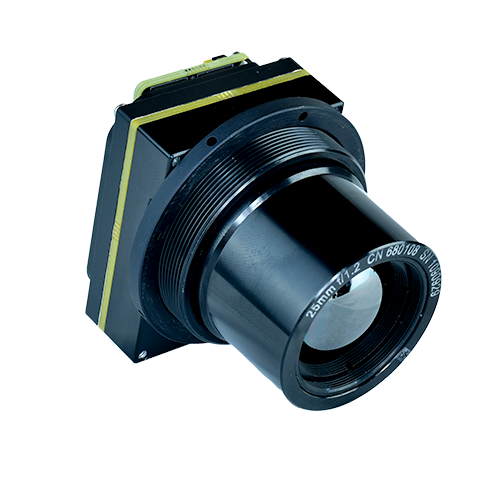

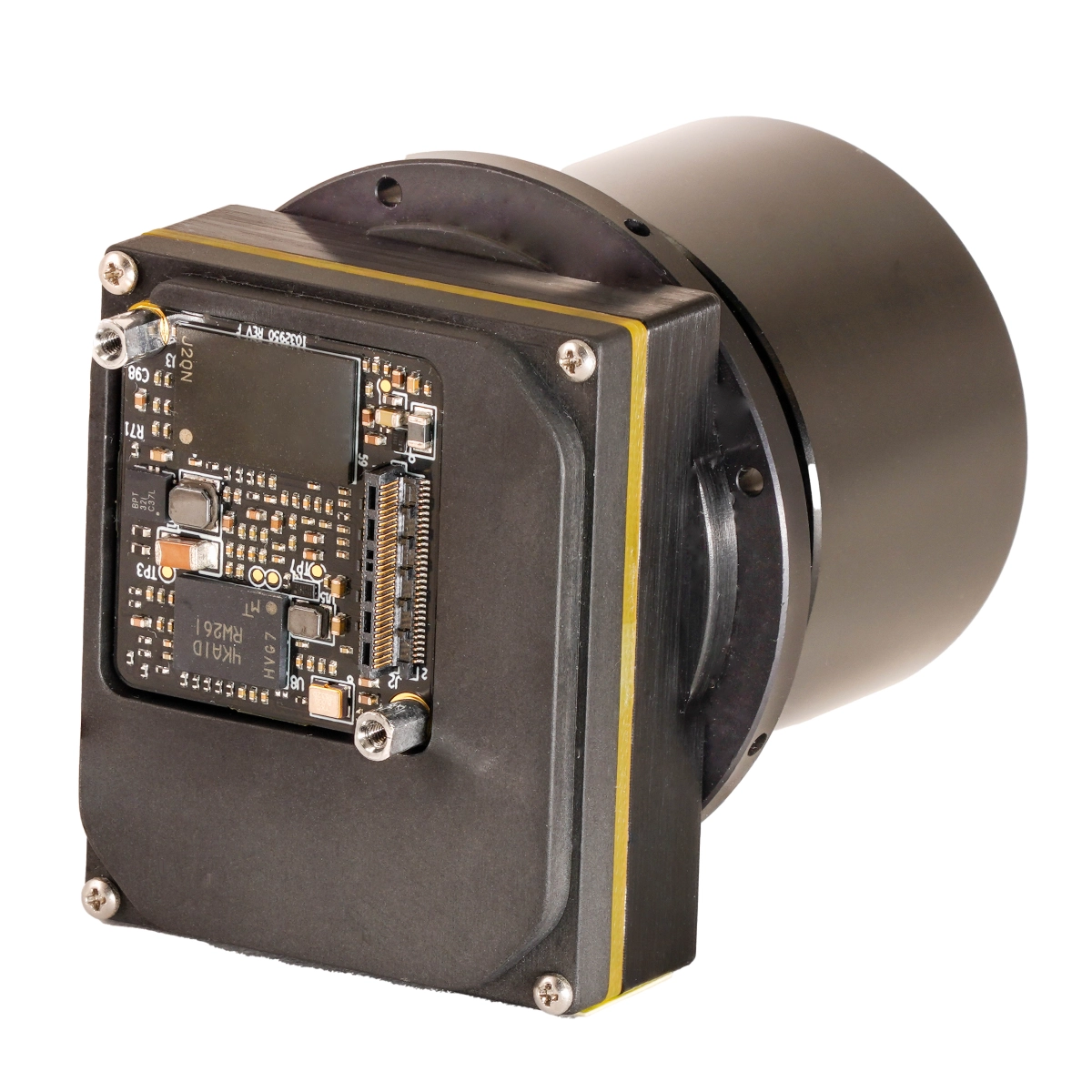

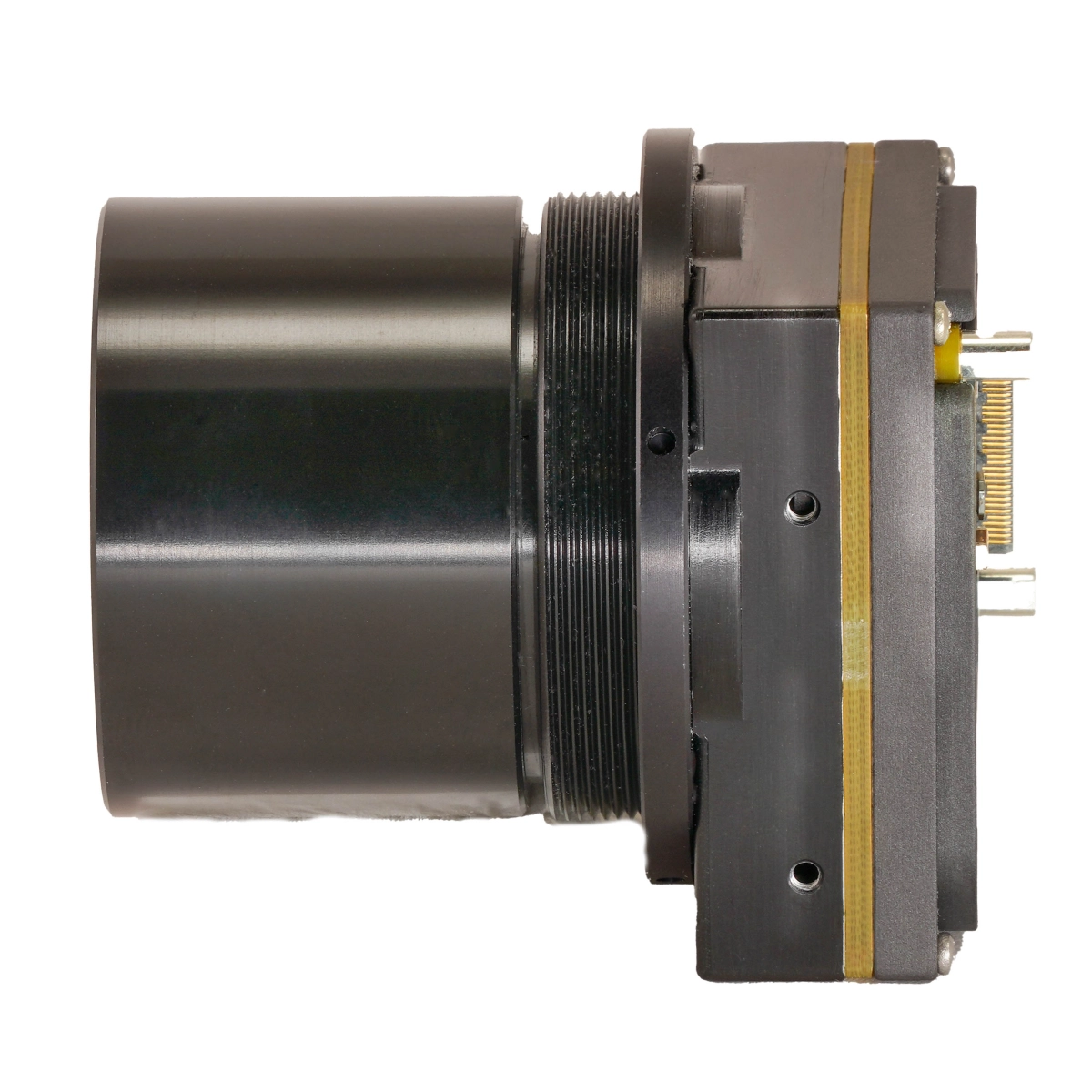

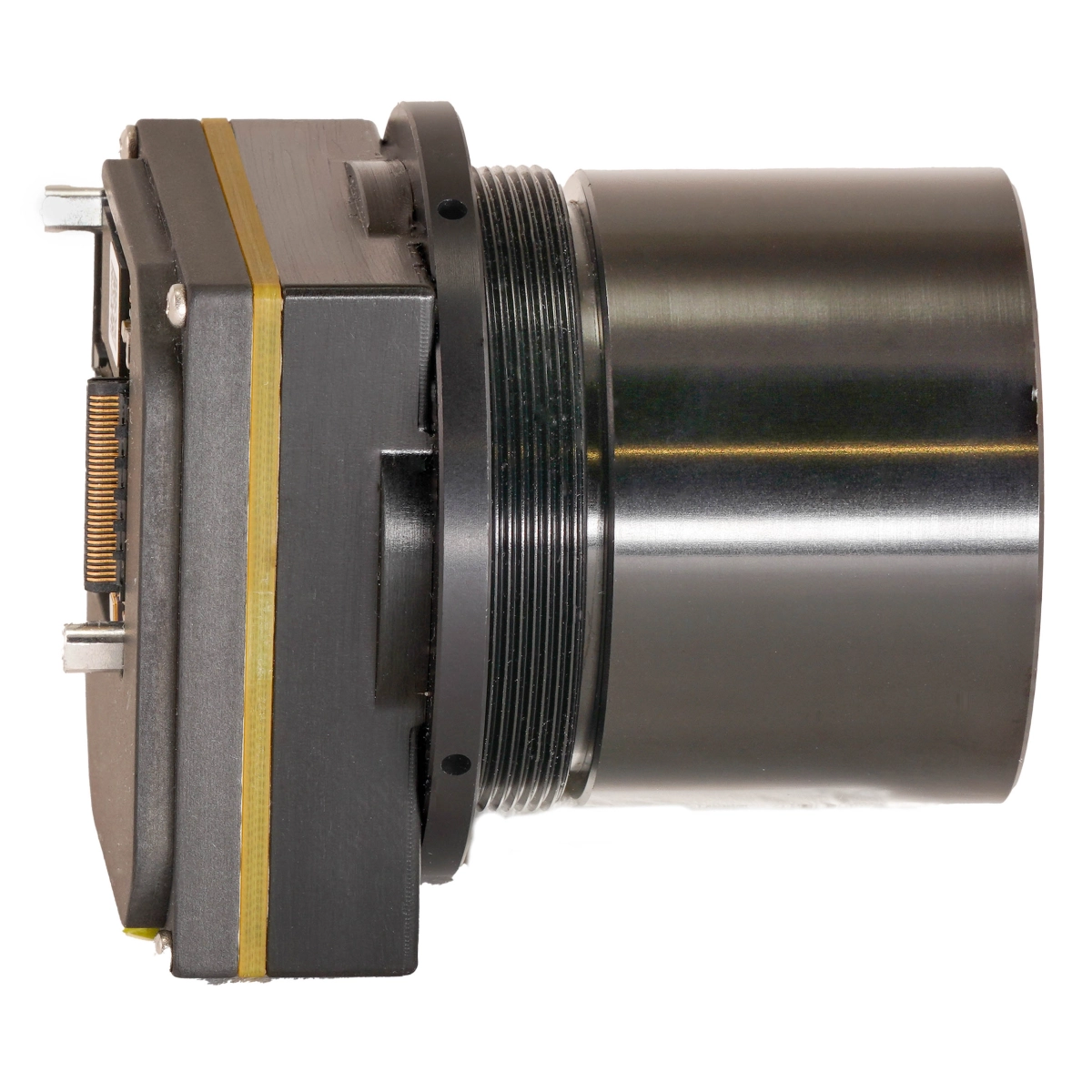

Tenum 1280

1280 HD compatible with Tamarisk® Products

The Tenum 1280 represents the smallest pixel pitch long-wave infrared camera core from Leonardo DRS. It delivers 1280HD detail and sensitivity in a low-SWaP package with backwards compatibility to existing Tamarisk products.

Technical Stats

Detector Type	Uncooled VOx Microbolometer
Array Format	1280 x 960, 1280 x 1024 (SXGA) default, 1312 x 1056 max
Pixel Pitch	10 micron
Spectral Response	LWIR 8-14um
Frame Rate	30 Hz (9 Hz option available)
Bit depth	14-bit, 8-bit
NETD	<30 mK

Digital Video Output	14-bit/8-bit LVCMOS or Camera Link®
NUC	1-point with shutter or through lens
Image Enhacement	Image Contrast Enhancement (ICE™) with gain and level bias controls
Color Palette Options	24-bit RGB
Digital Zoom and Pan	Region of Interest, E-zoom from 1X - 4X
Camera control/Command Interfaces/System Control	UART/RS-232 USB 2.0
Other Electrical Interfaces	External Sync
Input Voltage	3 - 5.5 V Base Configuration 4.5 - 18 V with Feature Board

Power Dissipation (nominal)	2.3 W Base Configuration, 2.4 with Feature Board
Operating Temp Range	-40°C to + 70°C
Sealed Rating	IP 67 compatible

	HFOV x VFOV	F/#	Size (L x W x H)	Weight
No Lens	No Lens	N/A	31 x 40 x 46 mm	61g

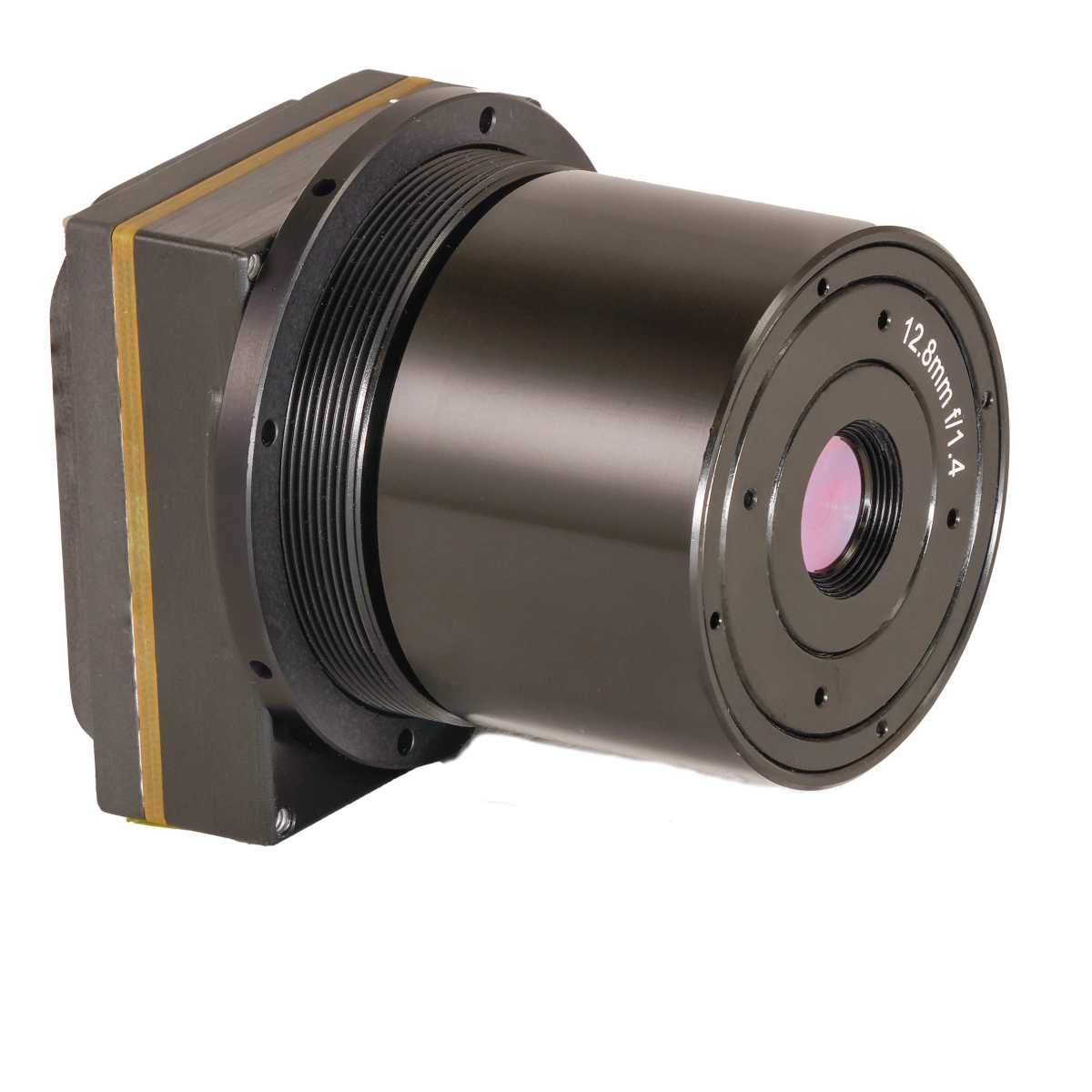

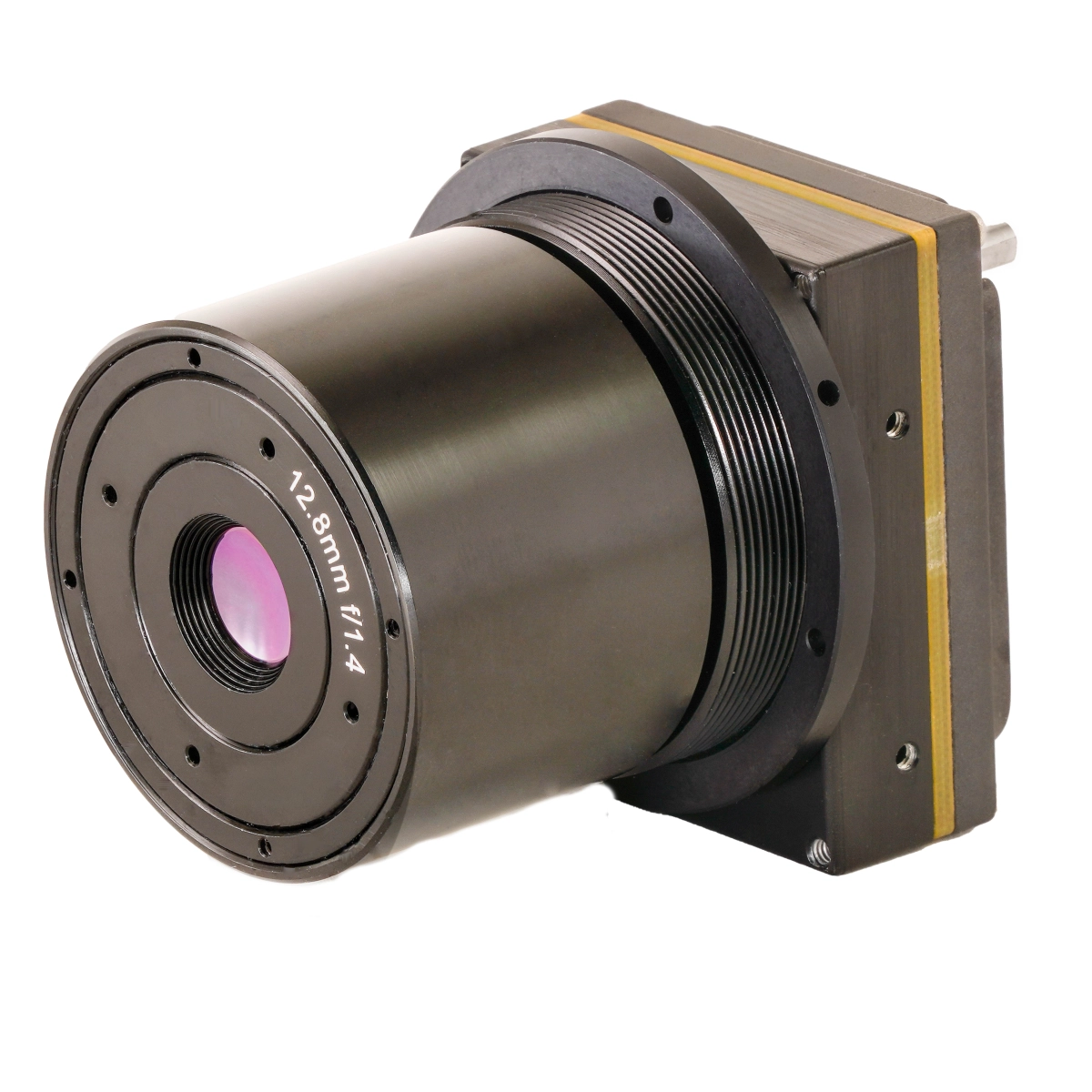

12.8 mm	60°	1.4	59 x 40 x 46 mm	140g
25 mm	30°	1.2	53 x 40 x 46 mm	118g
35 mm	21°	1.4	64 x 41 x 47 mm	136g

Tenum 1280 Signature Features

Long-Wave
Infrared

4 Lens Options

10 micron Pixel Pitch

Low SWaP
Light Payloads

We work with Leonardo DRS because product performance has not been compromised for lower cost solutions. The Tenum 1280 carries a 1280 x 1024 sensor capable of performing at less than 30 mk noise equivalent temperature difference (with spatiotemporal filtering). This 10 micron technology uses DRS’s patented Advanced Absorber Microbolometer Superstructure which captures energy at a higher rate for higher quality image.

Full user support from Sierra-Olympic Technologies, Inc.
High-performance, cost-effective LWIR infrared camera core
Smallest pixel pitch LWIR available
Ingress Rated
Compact, light, durable, versatile
