Ventus HD6-FIXED

Unparalleled Capabilities in Low SWaP Packages

Introducing the Ventus HD6-Fixed product family, potent yet compact fixed focal length HD MWIR cameras meticulously crafted for seamless integration. Small form factor allows for effortless inclusion into a wide variety of applications delivering unparalleled capabilities built to convenient packages.

Technical Stats

Detector Type	Mercury Cadmium Telluride (MCT)
Array Format	1280 x 960
Pixel Pitch	6 micron
Spectral Response	MWIR
Frame rate	30 Hz default 60 Hz capable
Bit Depth	14-bit
NETD	30 mK Typical

Digital Video Output	HDMI, HDSDI (optional), CameraLink
IP Video Output	Ethernet (H.264, H.265)
NUC	2-point NUC, 1-point with shutter, Bad Pixel Replacement
Digital Zoom/Pan	1X to 16X

	Standard Configuration	Core Configuration
Input Voltage	12 VDC	12 VDC
Power Dissipation	11W typical, 14W Max During Cooldown	< 5.6 W typical, 10.08W Max During Cooldown
Operating Temperature	-20°C to +40°C	-40°C to +71°C
Mounting	1/4-20 Tripod Mount, and M3 tapped holes	1/4-20 Tripod Mount, and M3 tapped holes

	No Lens	No Lens Core	30 mm Lens	30 mm Lens Core
EFL	N/a	N/a	30 mm	30 mm
F#	N/a	N/a	2.6	2.6
FOV	N/a	N/a	14.3º x 10.75º	14.3º x 10.75º
Focus	N/a	N/a	Threaded Focus	Threaded Focus
Environmental Coating	N/a	N/a	Athermalized, high-performance AR coating	Athermalized, high-performance AR coating
Size (L x W x H)	105 x 84 x 81 mm	95 x 89 x 58 mm	131 x 84 x 81 mm	122 x 89 x 58 mm
Weight	611g	488g	701g	580g

Ventus HD6-FIXED Signature Features

Mid-Wave
Infrared

60HZ

6 micron Pixel Pitch

Sierra-Olympia has built proven 6-um technology from DRS Leonardo into a complete camera system to leverage their HD (1280×960) focal plane with a proprietary long-life cooler for higher acuity and FOV with lower total cost of ownership. On-board video encoding and advanced image processing makes this camera perfect for integration into high-performance surveillance systems. The standard configuration includes a video encoder/processor for centralized interfaces and advanced image processing. A core configuration provides a SWaP optimized option.

Extended Cooler life for longer Cost Effective Operation
1280 x 960 HD Format
Integrated Image Processing
6 micron Pixel Size

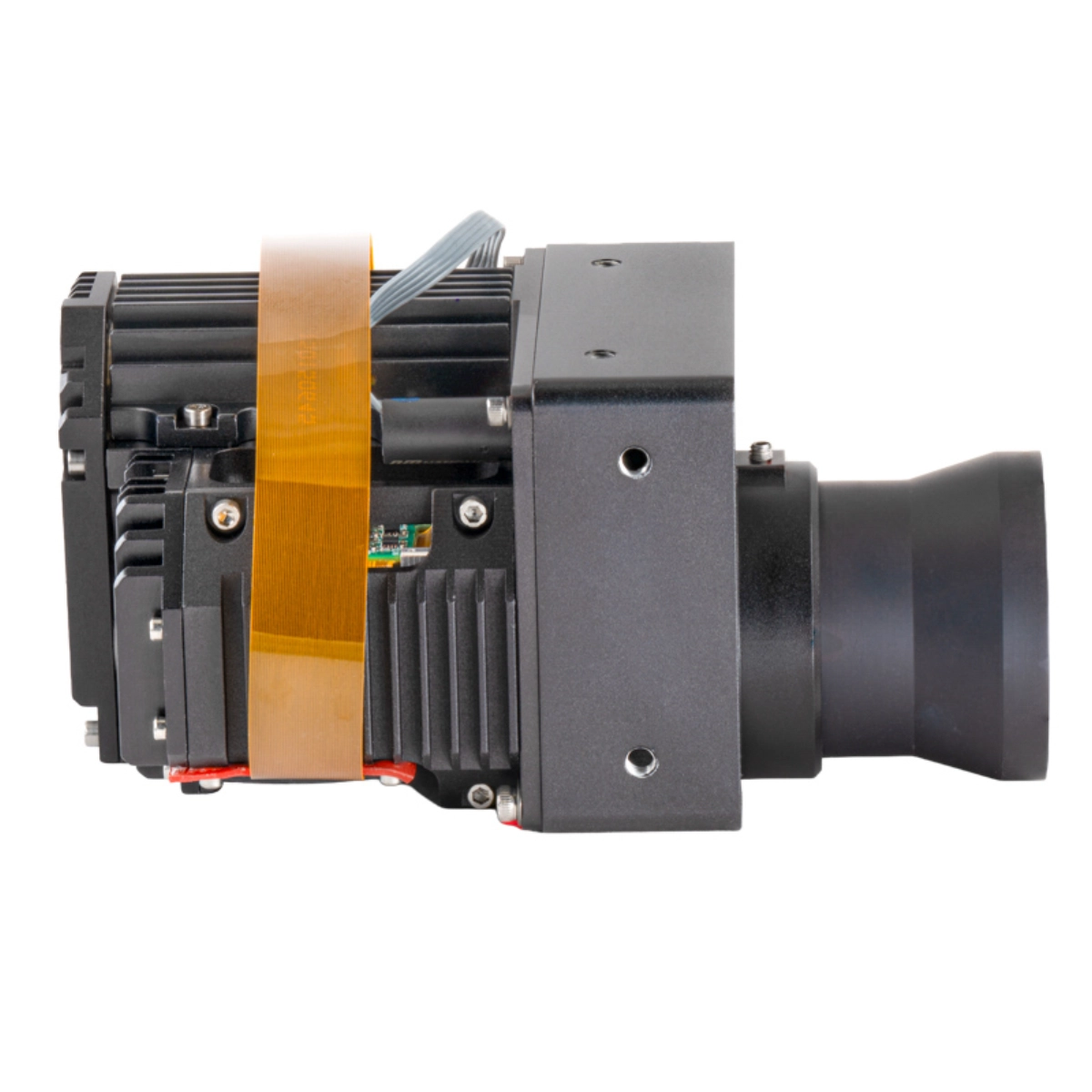

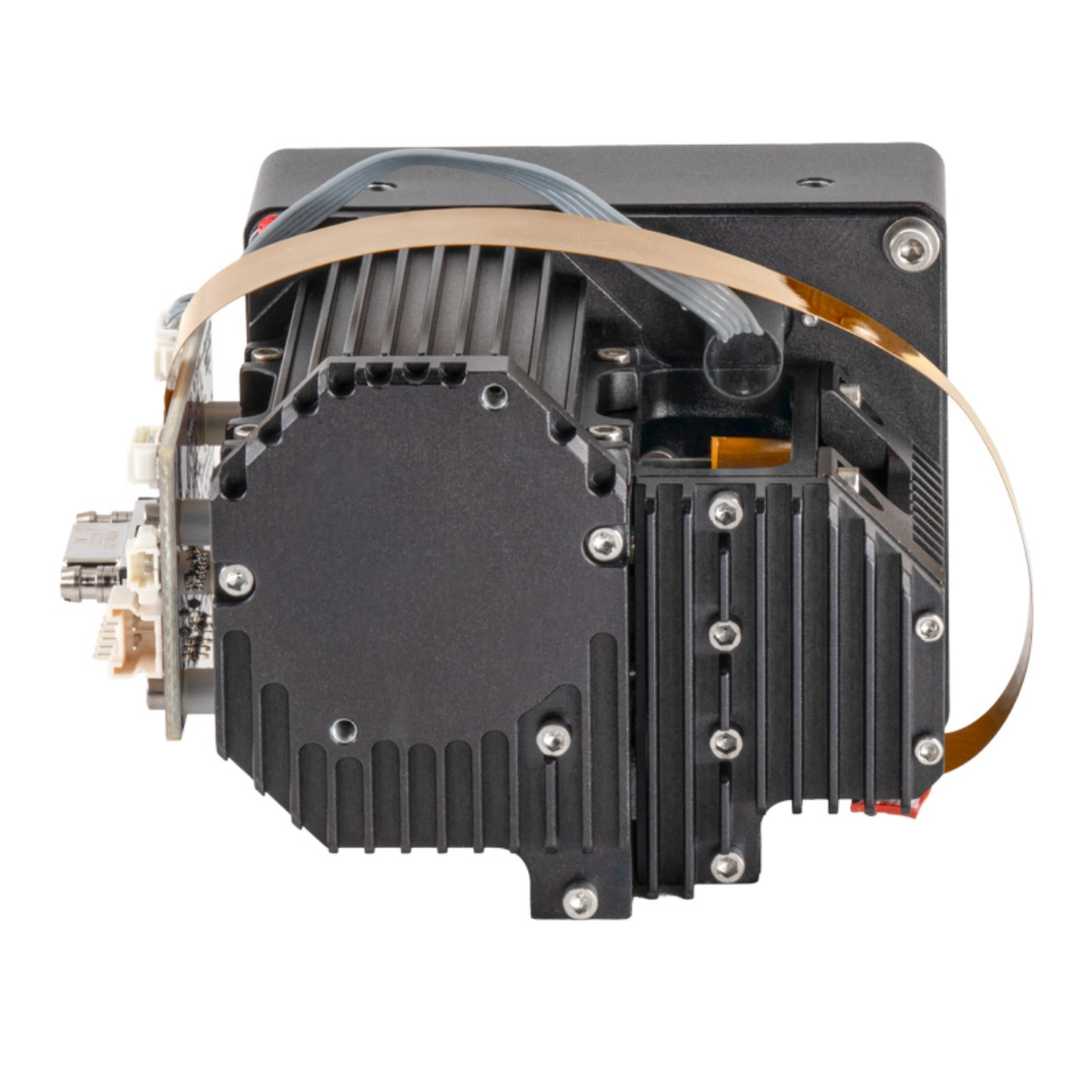

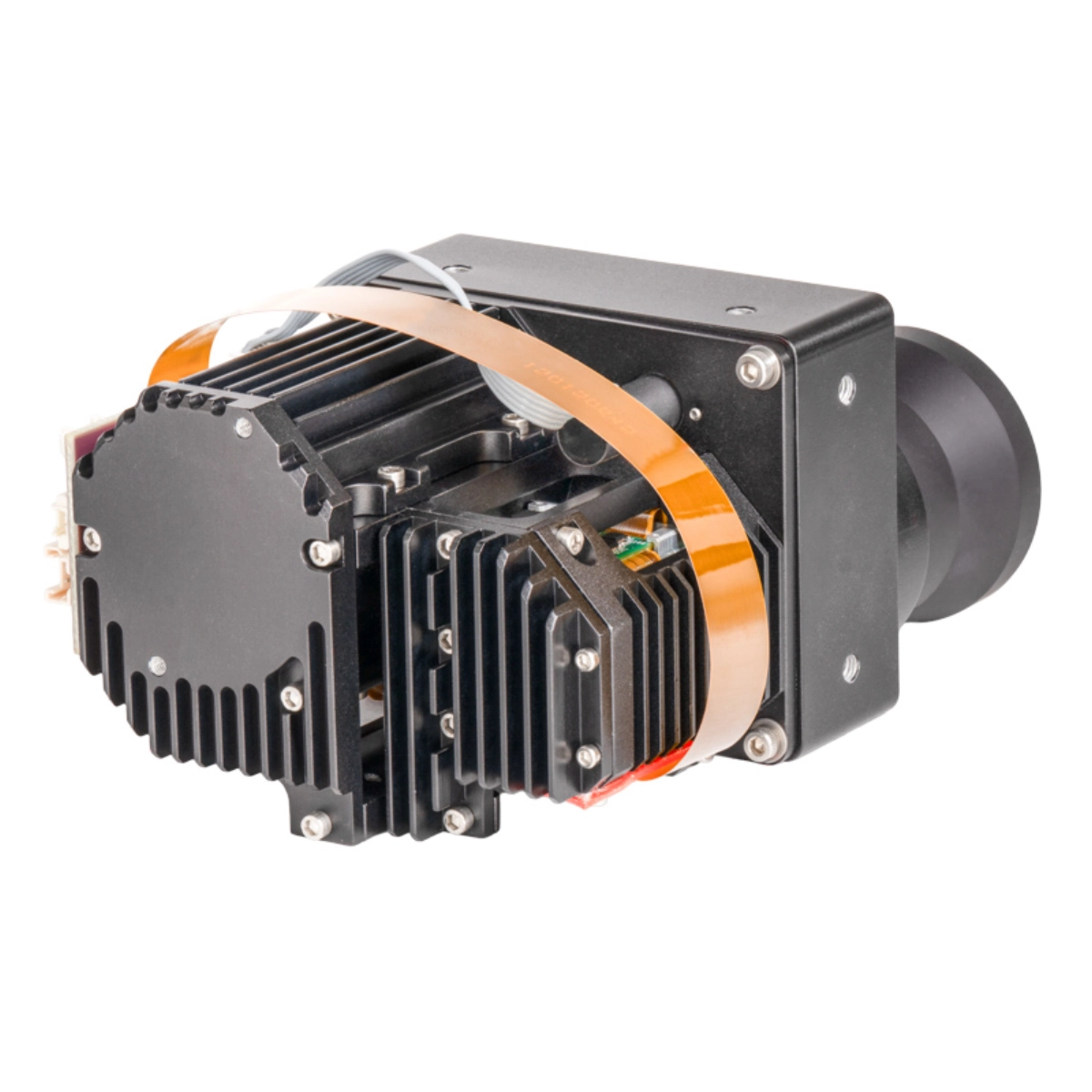

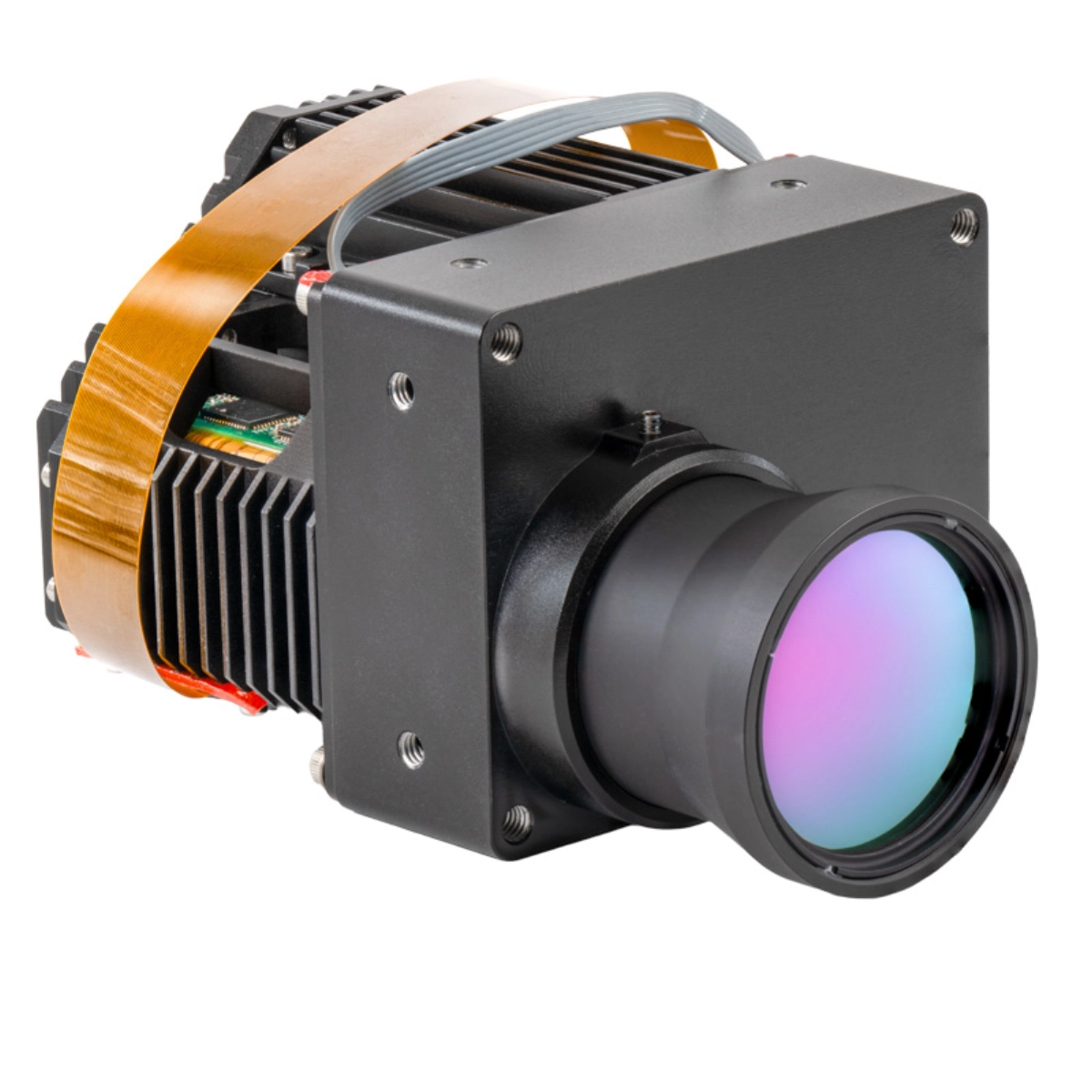

Ventus HD6-FIXED Still Images
