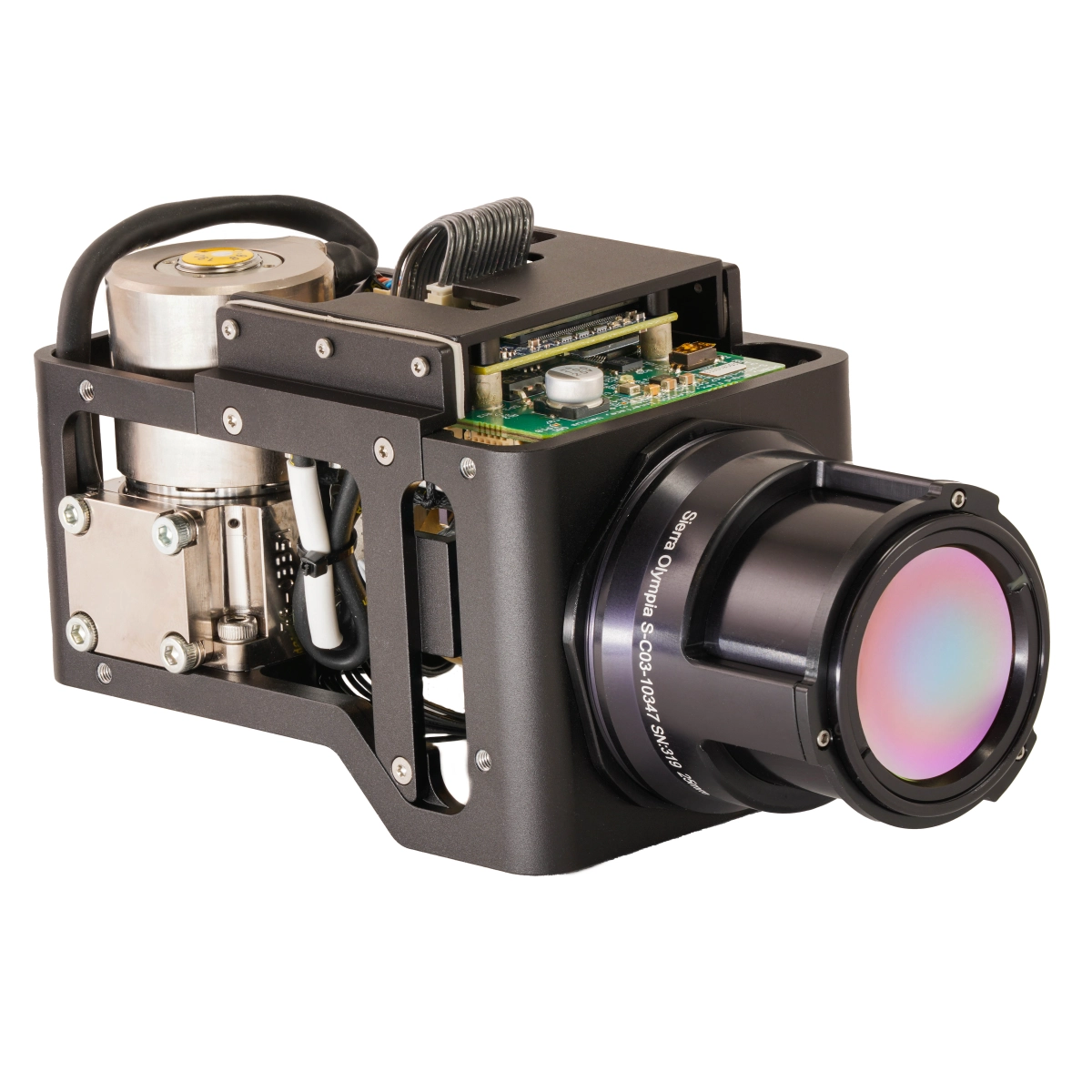

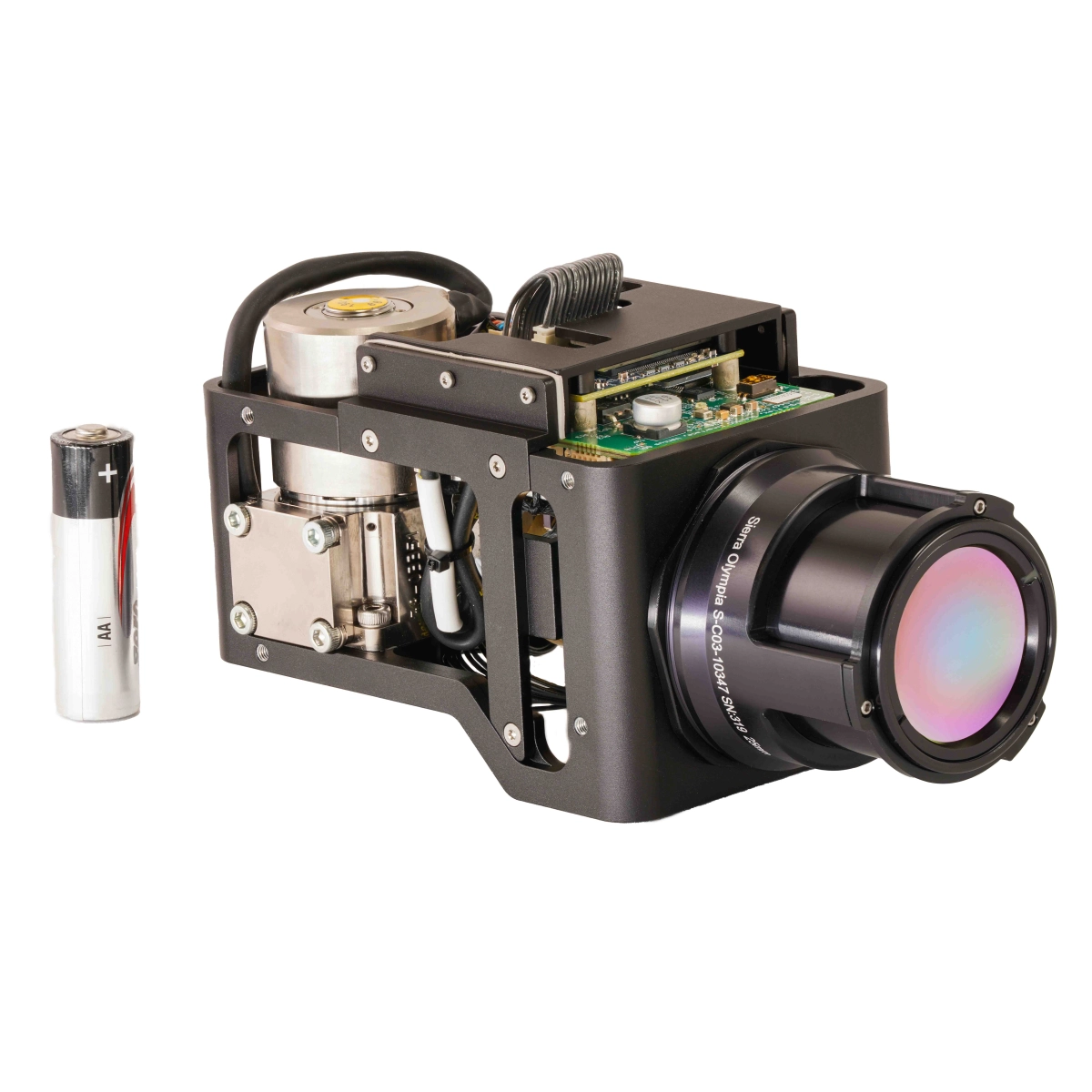

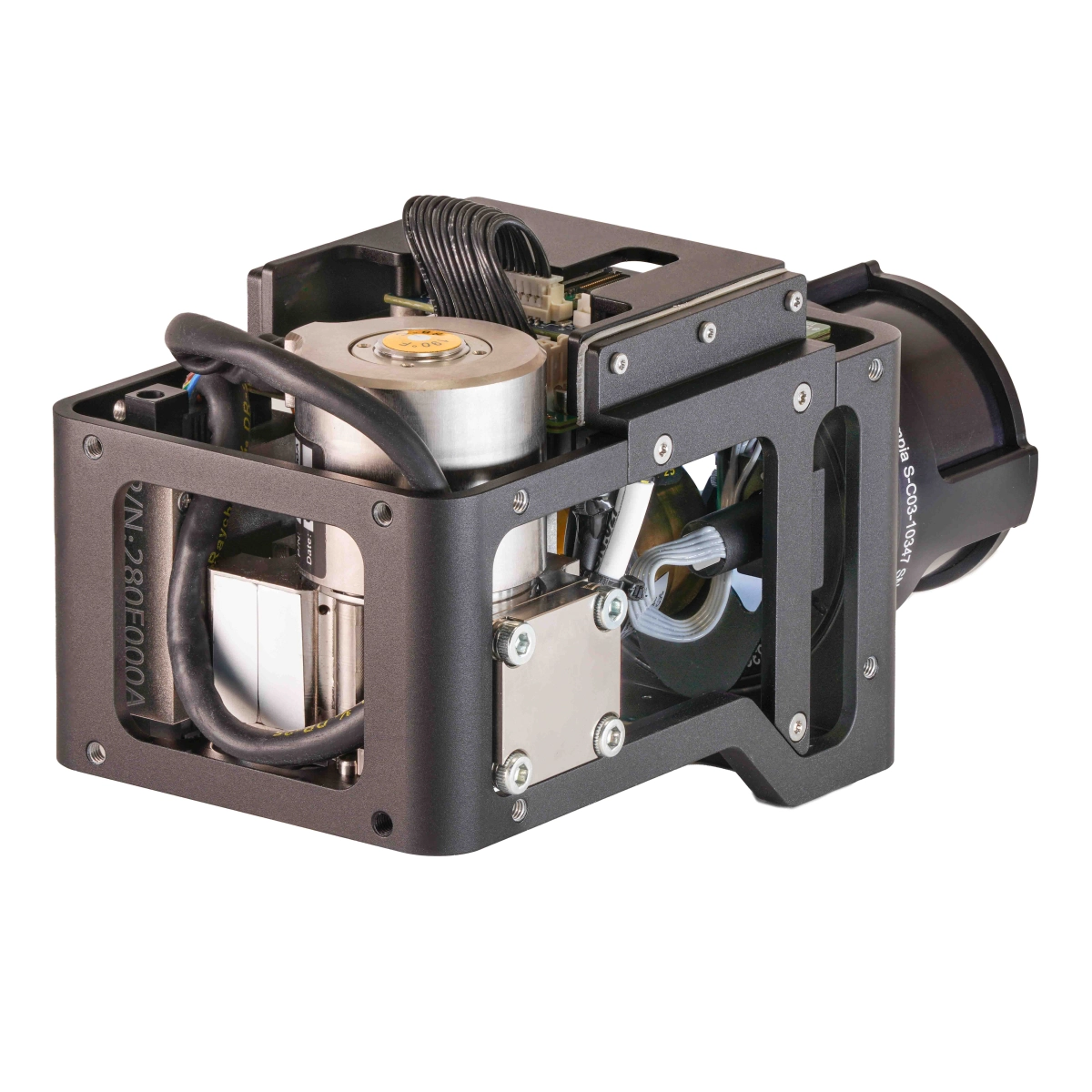

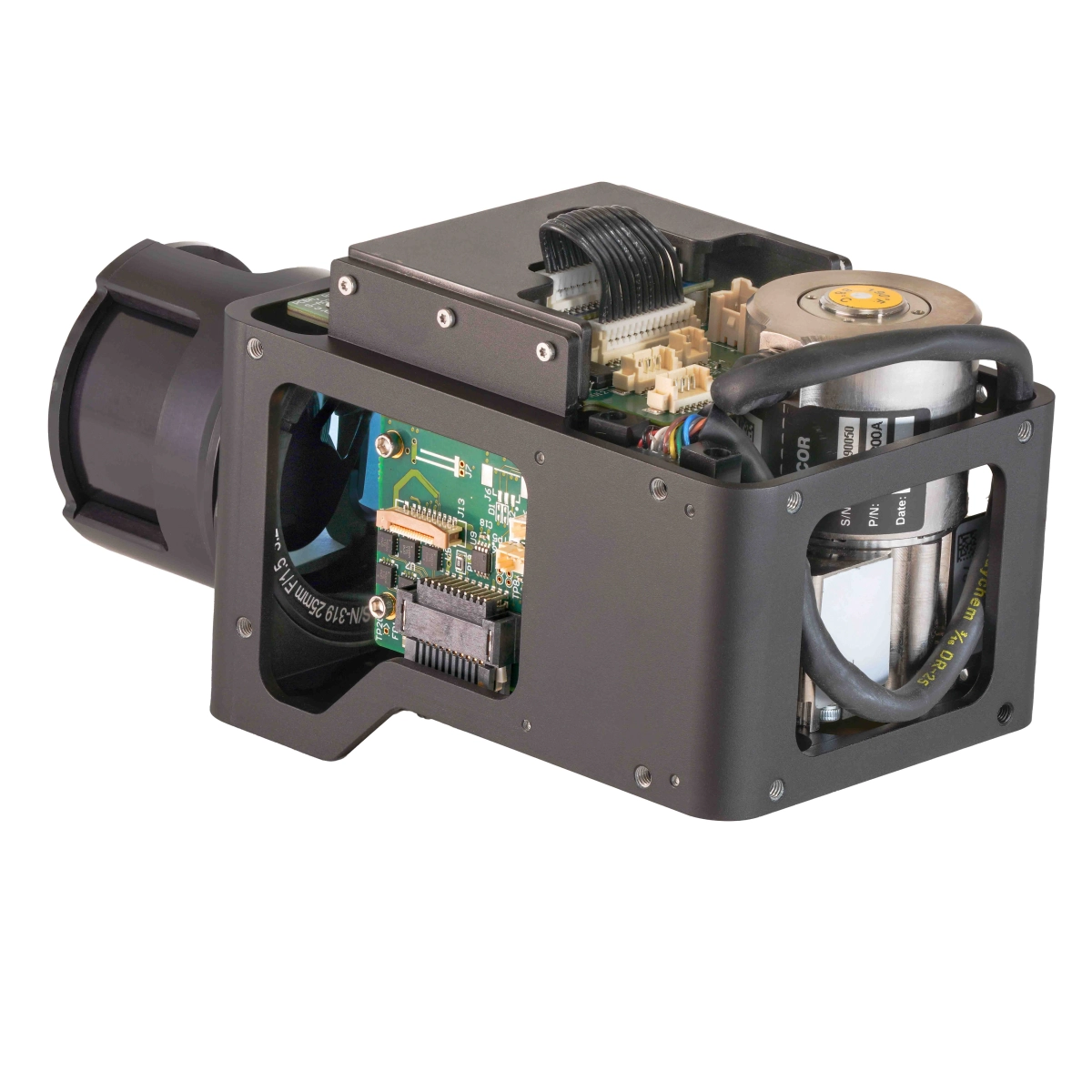

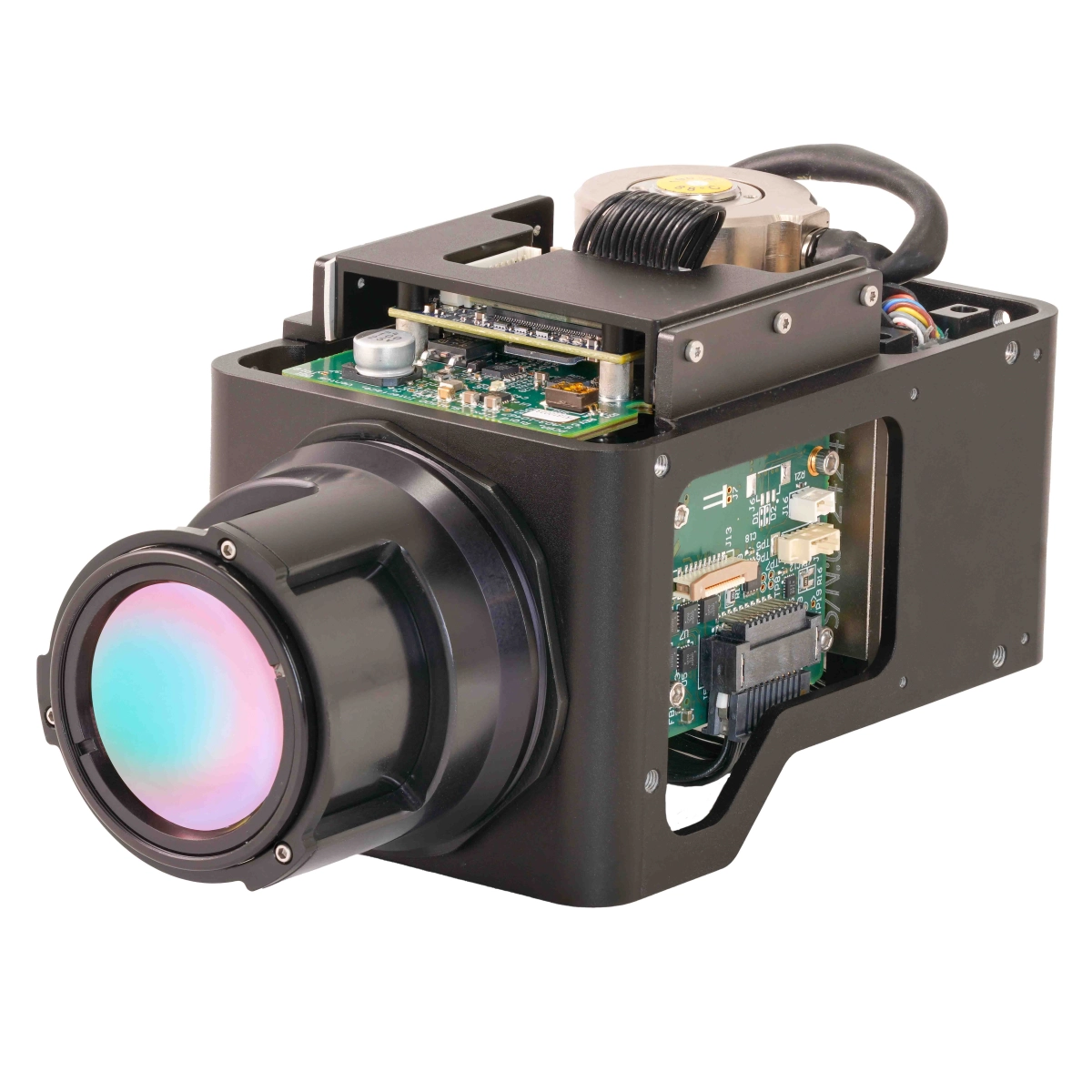

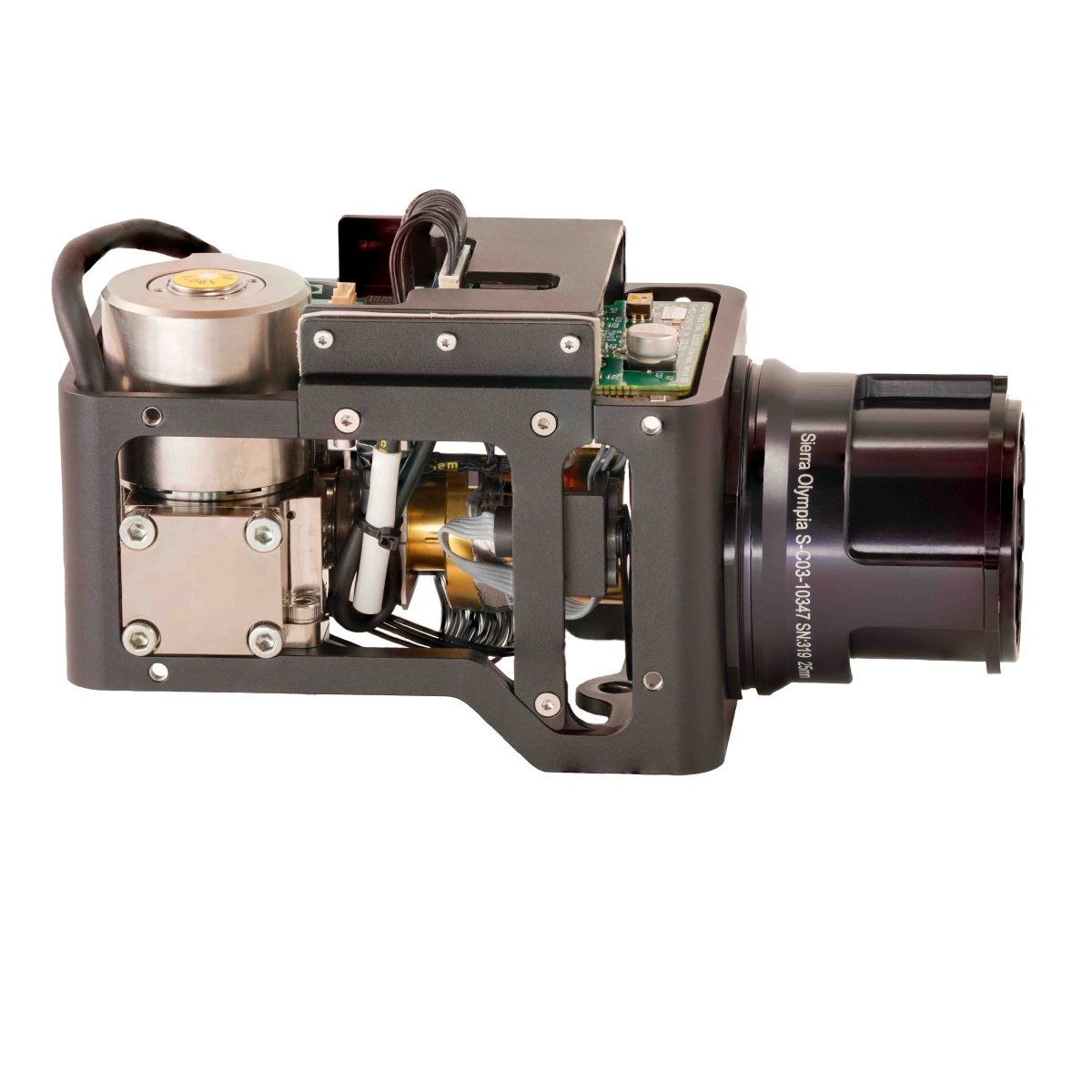

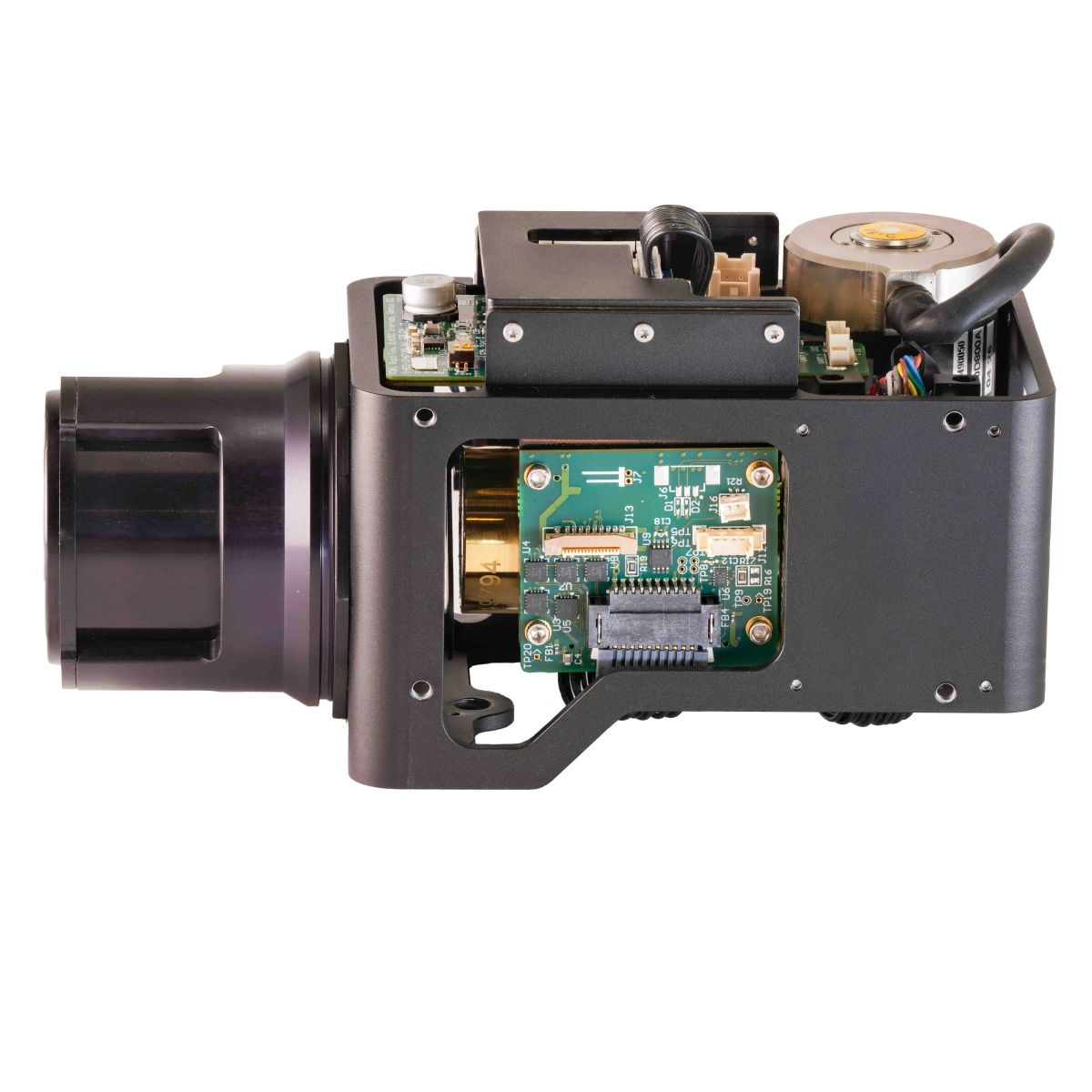

Ventus OGI™

Cutting-Edge Optical Gas Imaging Camera

Ventus OGI is an industry-leading, integration-ready 640 x 512 resolution MWIR camera core designed to detect and visualize hydrocarbon gases, including methane and propane.

Detectable Gases

Ethane Propane Propylene Methane
1-Pentene Butane Ethyl Benzene Heptane
Hexane Isoprene Octane
Ventus OGI™ Data Sheet

Technical Stats

Ventus OGI™ Signature Features

2 Lens Options
15 micron Pixel Pitch
Low SWaP
Light Payloads

The Ventus OGI are integrated into crewed and uncrewed ground or aerial vehicles, handheld portable and fixed mounted continuous monitoring systems. They are an industry-leading 640 x 512 HOT (high operating temperature) mid-wave infrared camera core designed to detect and visualize hydrocarbon gasses, including methane, propane and butane. The high-performance, low SWaP package is an invaluable tool for the oil and gas industry’s efforts to save time and money, increase efficiency, limit product loss, protect lives and reduce harm to the environment. Our Gas Enhancement Mode (GEM), which colorizes the hydrocarbon carbon gas leaks, such as methane, propane, benzene, etc., to detect leaks at well pads, tank farms, gas processing facilities, pipelines, refineries, etc. quickly and accurately. Our Ventus OGI camera was OOOOa certified in 2018.

  • Long-life HOT MWIR detector
  • 25 mm / 50 mm lens models
  • F 1.5 optic; 2x, 4x, 8x digital zoom
  • Gas Enhancement Mode colorizes leaks
  • 640 x 512 Array Format
  • 541 grams

  • OGI Integration: Aerial Detection

  • Ask an Expert: What are the OGI-detectable gases?

  • Methane Emissions Compliance: OGI

  • OGI Integration: AerialOGI & Sony Airpeak

  • Integrating Methane Detection into Airborne Drones

  • Optical Gas Imaging: Continuous monitoring and the value of HOT mid-wave infrared sensor technology

  • Monitor hydrocarbon gas systems with our Ventus OGI

  • Ask an Expert: Benefits of OGI and UAV integration

  • Ventus OGI: Gas leak detection from fixed-wing aircraft at 1,000 ft. above ground level

  • Ventus OGI: Gas Leak Detection with 640 × 512 Optical Gas Imaging HOT MWIR Camera

Exceptional Guidance From Sales Through Support

Work with our amazing sales team to making sure you have the correct specifications and are purchasing the right camera for the job. After you’ve purchased the camera our world class support team can help troubleshoot any issues that may come up.
